MCCB 400 Frame 110kA 3P 250A | Electronic Release | High Breaking Capacity by NHP
MCCB with 400 frame size and 110kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and high efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

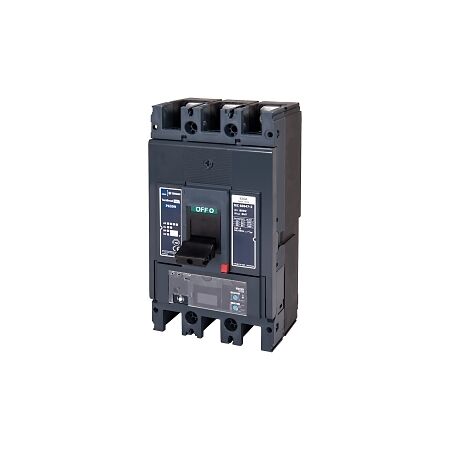

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Basic Electronic
Brand: NHP
SKU: P400S3250BE
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 110 kA
- Rated Service Short Circuit Breaking Capacity: 110 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 92-250 A
- Instantaneous Protection Adjustment Range: 750-3000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 12 kA
- Rated Short Circuit Breaking Capacity (ICS): 12 kA
- Short Time Withstand Current (ICW 0.3 sec): 5 kA
- Short Time Protection Adjustment Range: 138-2500 A
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- AC Power Loss per Pole: 11.1 W
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 110 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits from overload and short circuits
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 110kA 3P 250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
Non-Returnable & Non-Cancellable
