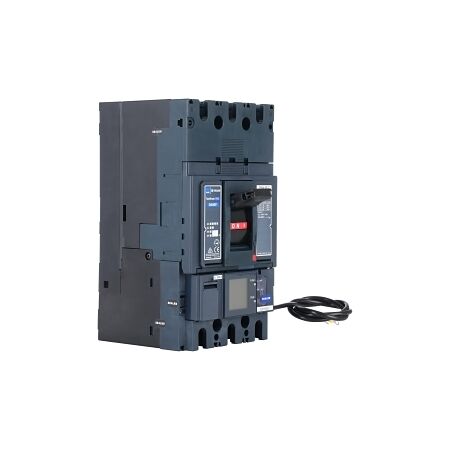

Terasaki TemBreak PRO MCCB 400 Frame 125kA 3P 400A Amp Meter Electronic

MCCB 400 Frame 125kA 3P 400A | Electronic Amp Meter | High Breaking Capacity by NHP

BRAND: NHP

SKU: B400P3400SX

$6,056.20 List price: $8,041.80

+ −

30 Days Return Delivery Options

MCCB with 400A rated current and 125kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic trip unit and integrated energy metering.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 125kA 3P 400A Amp Meter Electronic

Brand: NHP

SKU: B400P3400SX

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 400A

Technical Specifications

Rated Current: 400 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 125 kA
Rated Service Short Circuit Breaking Capacity: 85 kA
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 160-400 A
Instantaneous Protection Adjustment Range: 800-5200 A
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Power Loss: 140 W
Mechanical Life: 15000 cycles
Electrical Life: 6000 cycles
Pollution Degree: 3
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 260mm x 182mm x 140mm
Weight: 4.3 kg

Key Features

Electronic release trip unit for precise protection.
Integrated energy metering function for monitoring power usage.
High short circuit breaking capacity of 125 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Energy-efficient design helps reduce overall power consumption.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

B400P3400SX-AU-TBP-MCCB-400AF-Datasheet.pdf (B400P3400SX-AU-TBP-MCCB-400AF-Datasheet.pdf, 937 Kb) [Download]
