MCCB 400 Frame 125kA 3P 400A | Electronic Release | High Breaking Capacity by NHP
MCCB with 400A rated current and electronic release—ideal for industrial and commercial power distribution. Built for high breaking capacity of 125kA, ensuring reliable circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

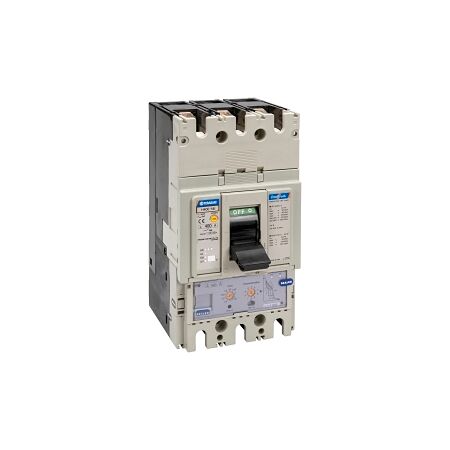

Product Name/Title: Terasaki TemBreak 2 MCCB 400 Frame 125kA 3P 400A Electronic
Brand: NHP
SKU: H400NE3400
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 85 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Protection Adjustment Range: 400-4000 A
- Rated Impulse Withstand Voltage: 8 kV
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Pollution Degree: 3
- Max Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 7.1 kg
Key Features
- Electronic release for precise trip settings.
- High breaking capacity of 125 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Terasaki TemBreak 2 MCCB 400 Frame 125kA 3P 400A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
