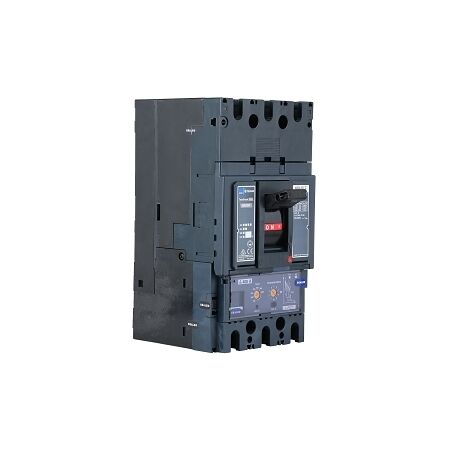

Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Basic Electronic

MCCB 400 Frame 200kA 3P 250A | Basic Electronic | High Breaking Capacity by NHP

BRAND: NHP

SKU: B400R3250BE

$3,968.60 List price: $5,269.70

+ −

30 Days Return Delivery Options

MCCB with 400 frame size and 200kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release trip unit and high efficiency.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Basic Electronic

Brand: NHP

SKU: B400R3250BE

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 250A

Technical Specifications

Rated Current: 250 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 200 kA
Rated Service Short Circuit Breaking Capacity: 150 kA
Trip Curve: LSI
Frame Size Rating: 400 A
Long Time Overload Protection Adjustment Range: 100-250 A
Instantaneous Protection Adjustment Range: 800-3250 A
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 50 kA
Power Loss: 54.69 W
Mechanical Life: 15000 cycles
Max Vibration Acceleration: 19 m/s²
Cable Cross Section Range: 35-400 mm²
Pollution Degree: 3
Rated Surrounding Temperature: 50 °C
Dimensions (H x L x W): 260mm x 182mm x 140mm
Weight: 4.3 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 200 kA at 415 V.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in commercial buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 400 Frame 200kA 3P 250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

B400R3250BE-AU-TBP-MCCB-400AF-Datasheet.pdf (B400R3250BE-AU-TBP-MCCB-400AF-Datasheet.pdf, 988 Kb) [Download]
