MCCB 400 Frame 200kA 3P 400A | Electronic Release | High Breaking Capacity by NHP
MCCB with 400 frame and 200kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and high efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

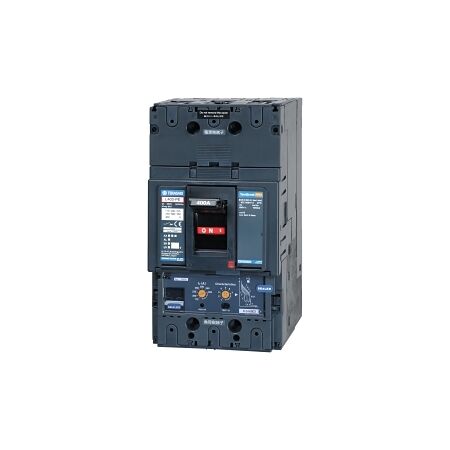

Product Name/Title: Terasaki TemBreak 2 MCCB 400 Frame 200kA 3P 400A Electronic
Brand: NHP
SKU: L400NE3400
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 160-400 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 50 kA
- Rated Short Circuit Breaking Capacity (ICS): 50 kA
- Short Time Withstand Current (ICW): 5 kA
- Short Time Protection Adjustment Range: 400-4000 A
- Rated Impulse Withstand Voltage: 8 kV
- AC Power Loss per Pole: 28.4 W
- Electrical Life: 6000 cycles
- Mechanical Life: 15000 cycles
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 260mm x 182mm x 140mm
- Weight: 7.1 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 200 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety and compliance.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information
Standard warranty of 12 months against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 400 Frame 200kA 3P 400A Electronic is available for immediate purchase, ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
