MCCB 400 Frame 36kA 3P 250A | Electronic Release | Adjustable Protection by NHP
MCCB with 400 frame size and 36kA short circuit capacity—ideal for industrial and commercial power distribution. Built for precise protection, with electronic release and adjustable overload settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

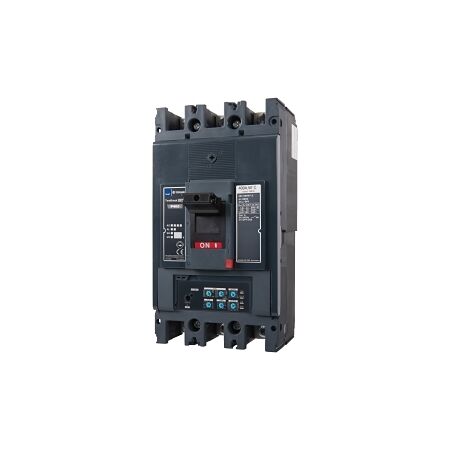

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Basic Electronic
Brand: NHP
SKU: P400F3250BE
Alternatively Known As: Terasaki MCCB, TemBreak PRO Circuit Breaker, 250A MCCB
Technical Specifications
- Rated Current: 250 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 36 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 400 A
- Long Time Overload Protection Adjustment Range: 92-250 A
- Instantaneous Protection Adjustment Range: 750-3000 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Power Loss per Pole: 11.1 W
- Mechanical Life: 15000 cycles
- Max Vibration Acceleration: 19 m/s²
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 50 °C
- Maximum Operating Temperature: 70 °C
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
Key Features
- Electronic release for precise protection.
- 36 kA short circuit breaking capacity.
- Adjustable overload and short circuit protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing power loss during operation.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 400 Frame 36kA 3P 250A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
