MCCB 400 Frame 50kA 3P 400A | Basic Electronic | High Breaking Capacity by NHP
MCCB with 400A rated current and 50kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise trip settings, with electronic release and high efficiency.
Sign in
Please login to continue to your account.

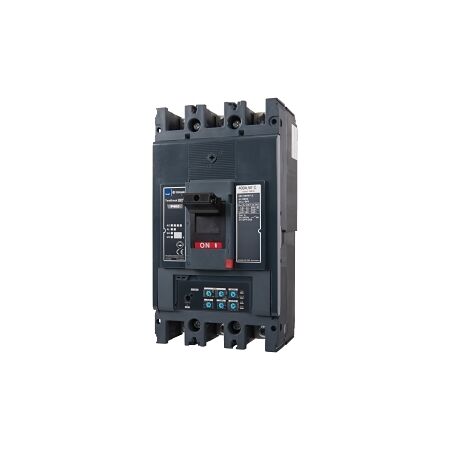

Product Name/Title: Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 400A Basic Electronic
Brand: NHP
SKU: P400N3400BE
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
- Rated Current: 400 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 50 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSI
- Rated Insulation Voltage: 800 V
- Short Time Withstand Current: 5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Mechanical Life: 15000 cycles
- Electrical Life: 6000 cycles
- Pollution Degree: 3
- Allowable Relative Humidity: 0-85 %
- Dimensions (H x L x W): 260mm x 145mm x 140mm
- Weight: 4.3 kg
- Electronic release for precise trip settings.
- High breaking capacity of 50 kA.
- Suitable for isolation and reverse connection of supply.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
- Designed for high efficiency, reducing energy loss during operation.
2 years warranty against manufacturing defects.
The Terasaki TemBreak PRO MCCB 400 Frame 50kA 3P 400A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical installations.
