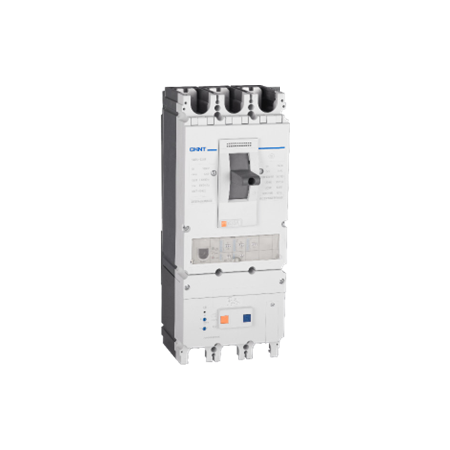

MCCB 4P 1250A 50kA Basic Electronic 1600A Frame NM8N Chint

BRAND: CABAC
SKU: 263112
$6,286.30 List price: $8,381.80
+ −
30 Days Return Electricians Unlock Trade Access
Chint NM8N 1250A 4P MCCB features 50kA breaking capacity, basic electronic trip unit with protected neutral and a 1600A frame. For switchboard mains protection.

Alternatively Known As: NM8N-1600S EN 1250 4C MCCB, 1250A 4-pole moulded case circuit breaker, electronic MCCB

Technical Specifications
  • Product Type: Moulded case circuit breaker
  • Series: NM8N-1600S
  • Rated Current: 1250 A
  • Frame Size: 1600 A
  • Number of Poles: 4P
  • Neutral Protection: Protected neutral, 4C configuration
  • Trip Unit: Basic electronic distribution protection, EN
  • Breaking Capacity: 50 kA at 380/400/415 V AC
  • Rated Operational Voltage: Up to 690 V AC
  • Rated Insulation Voltage: 1000 V AC
  • Rated Impulse withstand Voltage: 8 kV
  • Frequency: 50/60 Hz
  • Current Adjustment Range: 0.4–1.0 x In
  • Utilisation Category: Category B
  • Installation Type: Fixed, front or rear connection options
  • Reference Product Standard: IEC/EN 60947-2
  • Dimensions (H x L x W): 286mm x 280mm x 167mm
  • Weight: 17 kg
Key Features
  • 1250 A rated current for high-capacity distribution systems
  • 1600 A frame provides a robust platform for heavy-duty switchboard applications
  • 50 kA short-circuit breaking capacity at typical 380–415 V AC system voltages
  • Basic electronic trip unit for adjustable overload and short-circuit protection
  • Four-pole configuration with protected neutral pole
  • Suitable for switchboard mains and industrial power distribution protection
  • Compatible with a range of auxiliary and operating accessories
  • Designed for 50/60 Hz low-voltage AC distribution systems
Professional Installation Requirements
  • Installation, adjustment and commissioning must be performed by a licensed electrician or suitably qualified switchboard professional. Select cable, busbar, fault level and discrimination settings in accordance with AS/NZS 3000, applicable switchboard requirements and the manufacturer's instructions. Verify Australian certification and RCM requirements before installation.
Applications
  • Main incoming protection in commercial switchboards
  • Industrial power distribution boards
  • Power centres and high-capacity low-voltage switchboards
  • Protection of large feeders and distribution circuits
  • Facilities requiring protected neutral switching and electronic overcurrent protection
Standards & Compliance
  • AS/NZS 60947.2 is the applicable Australian/New Zealand product standard for low-voltage circuit breakers and MCCBs; verify product certification and RCM status for the intended Australian installation.
  • AS/NZS 3000 applies to selection, installation and verification within Australian electrical installations.
  • AS/NZS 61439 may apply where the MCCB is incorporated into a low-voltage switchboard or assembly.
Environmental Benefits
  • RoHS documentation is available for the NM8N product family, supporting restriction of hazardous substances in the equipment.
  • Durable moulded-case construction and electronic protection can extend service life and reduce replacement waste.
  • Adjustable protection settings help match the breaker to the installation, supporting efficient equipment utilisation and reduced nuisance replacement.
  • Metal and thermoplastic components can be separated for appropriate recycling at end of service life, subject to local recycling facilities.
Warranty Information

CHINT's general policy provides a 27-month warranty from the date of manufacture for other low-voltage apparatus sold through authorised channels, subject to the sales contract and exclusions for improper installation, misuse or unauthorised modification.

Available Now

Available through authorised CHINT distributors in Australia.
