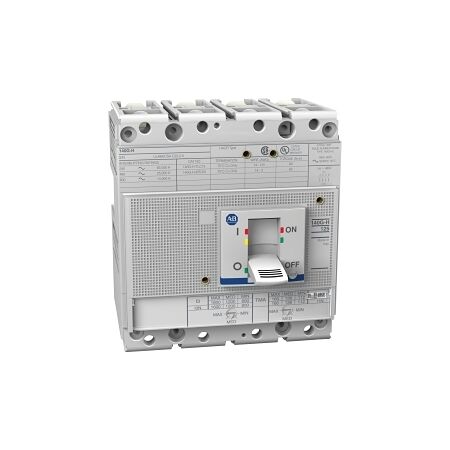

Allen-Bradley 140G MCCB H Frame 36kA 4P 160A Adjustable Thermal Magnetic

MCCB 4P 160A | 36kA Breaking Capacity | Adjustable Thermal Magnetic by NHP

BRAND: NHP

SKU: 140GH2F4D16

$1,040.70 List price: $1,381.90

+ −

30 Days Return Delivery Options

MCCB with 160A rated current and 36kA breaking capacity—ideal for industrial and commercial power distribution. Built for safety, with adjustable thermal and magnetic trip settings for customized protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 4P 160A Adjustable Thermal Magnetic

Brand: NHP

SKU: 140GH2F4D16

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications

Rated Current: 160 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 36 kA
Rated Service Short Circuit Breaking Capacity: 36 kA
Type of Protection: Thermal/magnetic release
Trip Curve: Adjustable thermal, adjustable magnetic
Long Time Overload Protection Adjustment Range: 112-160 A
Instantaneous Protection Adjustment Range: 800-1600 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity (ICU): 10 kA
Rated Short Circuit Breaking Capacity (ICS): 10 kA
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 8000 cycles
Mechanical Life: 25000 cycles
Power Loss: 64.6 W
Suitable for DIN Rail Mounting: Yes
Dimensions (H x L x W): 130mm x 116mm x 120mm
Weight: 1.6 kg

Key Features

Adjustable thermal and magnetic trip settings for customized protection.
High breaking capacity of 36 kA for enhanced safety.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

Standard warranty as per manufacturer guidelines.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 4P 160A Adjustable Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH2F4D16-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH2F4D16-AU-140G-MCCB-H-Frame-Datasheet.pdf, 609 Kb) [Download]
