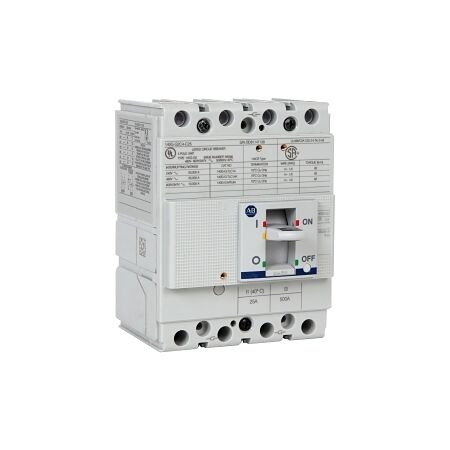

MCCB 4P 20A | 36kA Short Circuit | Fixed Thermal Magnetic | G Frame by NHP

BRAND: NHP
SKU: 140GG2C4C20
$211.10 List price: $280.30
+ −
30 Days Return Delivery Options
MCCB with 4 poles and 20A rated current—ideal for industrial and commercial power distribution. Built for reliable protection, featuring 36kA short circuit capacity and fixed thermal magnetic trip unit.

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 4P 20A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GG2C4C20

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Current: 20 A
  • Number of Poles: 4
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 36 kA
  • Rated Service Short Circuit Breaking Capacity: 36 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Fixed thermal, fixed magnetic
  • Frame Size Rating: 160 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Suitable for Isolation: Yes
  • Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
  • Rated Short Circuit Breaking Capacity (ICS): 4.5 kA at 690 V AC
  • Rated Impulse Withstand Voltage: 8 kV
  • Reverse Connection of Supply Possible: Yes
  • Electrical Life: 8000 cycles
  • Power Loss: 7.2 W
  • DIN Rail Mounting: Optional
  • Mechanical Life: 25000 cycles
  • Rated Surrounding Temperature: 40 °C
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40 to 80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 130mm x 101mm x 101.2mm
  • Weight: 1.4 kg
Key Features
  • Fixed thermal and magnetic trip unit for reliable protection.
  • Rated short circuit breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in electrical installations
  • Commercial: Suitable for use in commercial buildings and facilities
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Designed for long service life, reducing the need for frequent replacements.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB G Frame 36kA 4P 20A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

140GG2C4C20-AU-140G-MCCB-G-Frame-Datasheet.pdf (140GG2C4C20-AU-140G-MCCB-G-Frame-Datasheet.pdf, 316 Kb) [Download]
