MCCB 4P 30A | 36kA Breaking Capacity | Fixed Thermal Magnetic by NHP

BRAND: NHP
SKU: 140GG2C4C30
$211.10 List price: $280.30
+ −
30 Days Return Delivery Options
MCCB with 4 poles and 30A rated current—ideal for industrial and commercial electrical distribution. Built for high breaking capacity of 36kA, with fixed thermal and magnetic protection.

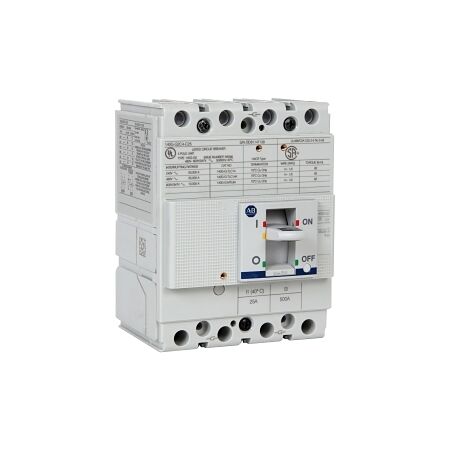

Product Name/Title: Allen-Bradley 140G MCCB G Frame 36kA 4P 30A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GG2C4C30

Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 30A

Technical Specifications
  • Rated Current: 30 A
  • Number of Poles: 4
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 36 kA
  • Rated Service Short Circuit Breaking Capacity: 36 kA
  • Type of Protection: Thermal/magnetic release
  • Trip Curve: Fixed thermal, fixed magnetic
  • Frame Size Rating: 160 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 800 V
  • Suitable for Isolation: Yes
  • Rated Short Circuit Breaking Capacity (ICU): 6 kA at 690 V AC
  • Rated Short Circuit Breaking Capacity (ICS): 4.5 kA at 690 V AC
  • Rated Impulse Withstand Voltage: 8 kV
  • Reverse Connection of Supply Possible: Yes
  • Electrical Life: 8000 cycles
  • Power Loss: 7.4 W
  • DIN Rail Mounting: Optional
  • Mechanical Life: 25000 cycles
  • Rated Surrounding Temperature: 40 °C
  • Maximum Operating Temperature: 75 °C
  • Storage Temperature: -40 to 80 °C
  • Max Altitude Before Derating: 2000 m
  • Dimensions (H x L x W): 130mm x 70mm x 101.2mm
  • Weight: 1.4 kg
Key Features
  • Fixed thermal and magnetic trip unit for reliable protection.
  • High breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and protection
  • Commercial: Electrical distribution systems
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss during operation.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB G Frame 36kA 4P 30A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical distribution systems.

Non-Returnable & Non-Cancellable

140GG2C4C30-AU-140G-MCCB-G-Frame-Datasheet.pdf (140GG2C4C30-AU-140G-MCCB-G-Frame-Datasheet.pdf, 316 Kb) [Download]
