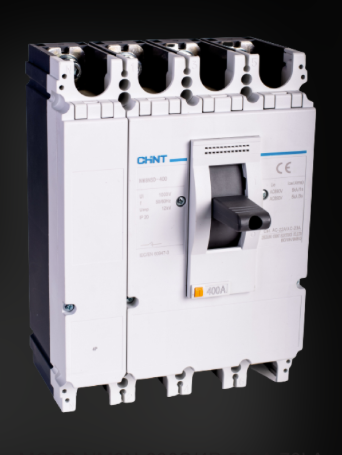

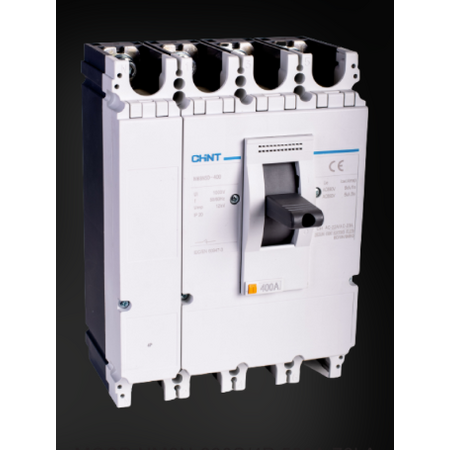

MCCB 4P 315A 36kA Thermal Magnetic 400A Frame NM8N Chint
Chint NM8N 315A 4P MCCB features 36kA breaking capacity, thermal-magnetic trip unit with protected neutral and a 400A frame. Ideal for switchboard mains protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Thermal-Magnetic Circuit Breaker, Main Circuit Breaker
Technical Specifications
- Series: NM8N
- Rated Current: 315A
- Frame Size: 400A
- Number of Poles: 4P
- Trip Unit: Thermal-magnetic
- Neutral Protection: Protected neutral
- Rated Ultimate Breaking Capacity: 36kA at 380/400/415V AC
- Rated Service Breaking Capacity: 36kA at 380/400/415V AC
- Rated Operational Voltage: Up to 690V AC, 50/60Hz
- Rated Insulation Voltage: 1000V
- Rated Impulse Withstand Voltage: 8kV
- Utilisation Category: A
- Mounting: Fixed, plug-in or DIN-rail options subject to configuration
- Mechanical Life: Up to 25,000 operating cycles
- Electrical Life: Up to 10,000 operating cycles at 415V AC and rated current
- Operating Temperature: -40°C to +70°C
- Ingress Protection: IP40 when correctly installed
- Dimensions (H x L x W): 157mm x 88.7mm x 140mm
- Weight: 2.5 kg
Key Features
- Four-pole protection for three-phase systems with neutral switching
- Thermal-magnetic overload and short-circuit protection
- 400A frame accommodates a 315A rated current
- 36kA breaking capacity at typical Australian low-voltage system voltages
- Suitable for switchboard mains and sub-main protection
- Supports isolation functions when installed and configured appropriately
- Compact moulded-case construction for commercial and industrial switchboards
Professional Installation Requirements
- Installation, testing and commissioning must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's instructions and applicable switchboard requirements. Confirm fault levels, conductor sizing, discrimination and RCM or local approval requirements before installation.
Applications
- Main incoming protection in commercial switchboards
- Sub-main protection in industrial distribution boards
- Protection of low-voltage three-phase distribution circuits
- Commercial buildings, industrial plants and data-centre power distribution
- Retrofitting or upgrading compatible CHINT NM8N switchboard assemblies
Standards & Compliance
- AS/NZS 60947.2: Low-voltage switchgear and controlgear – circuit-breakers, as the applicable Australian and New Zealand product standard
- AS/NZS 3000: Electrical installations, applicable to installation and wiring practices
- CHINT documentation specifies compliance with IEC 60947-2; verify Australian approval and RCM requirements for the selected supply configuration
