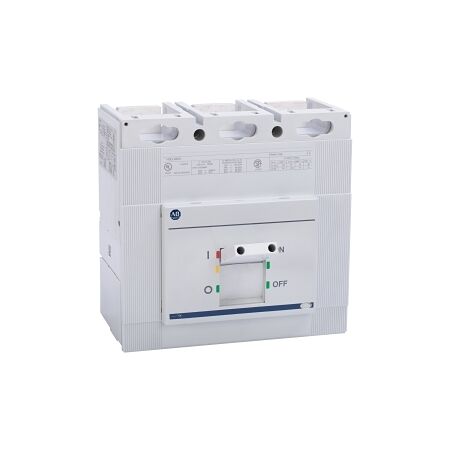

Allen-Bradley 140G MCCB M Frame 70kA 4P 630A Electronic LSIG

MCCB 4P 630A | 70kA Breaking Capacity | Electronic LSIG | M Frame by NHP

BRAND: NHP

SKU: 140GM6I4D63

$8,488.20 List price: $11,271.20

+ −

30 Days Return Delivery Options

MCCB with 630A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic LSIG trip unit and integrated earth fault safety.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame 70kA 4P 630A Electronic LSIG

Brand: NHP

SKU: 140GM6I4D63

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 630A

Technical Specifications

Rated Current: 630 A
Number of Poles: 4
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 70 kA
Type of Protection Trip Unit: Electronic release
Trip Curve: LSIG
Frame Size Rating: 800 A
Long Time Overload Protection Adjustment Range: 252-630 A
Instantaneous Protection Adjustment Range: 945-7560 A
Rated Frequency: 50-60 Hz
Rated Insulation Voltage: 1000 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Rated Impulse Withstand Voltage: 8 kV
Electrical Life: 7000 cycles
Power Loss: 120 W
Dimensions (H x L x W): 268mm x 159mm x 280mm
Weight: 15.1 kg

Key Features

Electronic release trip unit for precise protection.
Integrated earth fault protection for enhanced safety.
High short circuit breaking capacity of 70 kA.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Suitable for various electrical installations requiring circuit protection

Standards & Compliance

Complies with AS/NZS 60950 for safety of electrical equipment.

Environmental Benefits

Designed for high efficiency, reducing energy loss and improving system reliability.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame 70kA 4P 630A is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GM6I4D63-AU-140G-MCCB-M-Frame-Datasheet.pdf (140GM6I4D63-AU-140G-MCCB-M-Frame-Datasheet.pdf, 254 Kb) [Download]
