MCCB 4P 90A | 70kA Breaking Capacity | Fixed Thermal Magnetic by NHP
MCCB with 4 poles and 90A rated current—ideal for industrial motor control and commercial electrical distribution. Built for high breaking capacity of 70kA, with fixed thermal and magnetic protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

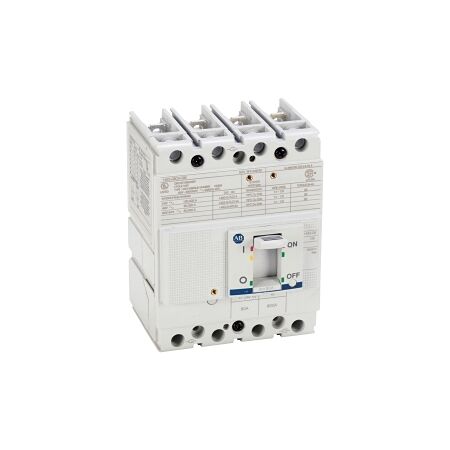

Product Name/Title: Allen-Bradley 140G MCCB G Frame 70kA 4P 90A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GG6C4C90
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 90A
Technical Specifications
- Rated Current: 90 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 35 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 160 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 10 kA
- Rated Short Circuit Breaking Capacity (ICS): 5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life: 8000 cycles
- Power Loss: 22.7 W
- DIN Rail Mounting: Optional
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 130mm x 70mm x 101.2mm
- Weight: 1.4 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 70 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and protection
- Commercial: Electrical distribution systems
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB G Frame 70kA 4P 90A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
