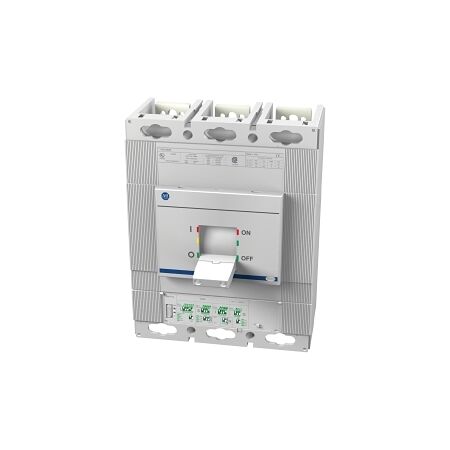

MCCB 600A 3P 70kA | Electronic LSIG | M Frame by NHP

BRAND: NHP
SKU: 140GM6I3D60
$9,502.30 List price: $12,617.80
+ −
30 Days Return Delivery Options
MCCB with 600A rated current and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic LSIG trip unit and integrated earth fault protection.

Product Name/Title: Allen-Bradley 140G MCCB M Frame 70kA 3P 600A Electronic LSIG

Brand: NHP

SKU: 140GM6I3D60

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 600A

Technical Specifications
  • Rated Current: 600 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V
  • Rated Ultimate Short Circuit Breaking Capacity: 70 kA
  • Rated Service Short Circuit Breaking Capacity: 70 kA
  • Type of Protection Trip Unit: Electronic release
  • Trip Curve: LSIG
  • Frame Size Rating: 800 A
  • Long Time Overload Protection Adjustment Range: 240-600 A
  • Instantaneous Protection Adjustment Range: 900-7200 A
  • Rated Frequency: 50-60 Hz
  • Rated Insulation Voltage: 1000 V
  • Rated Short Circuit Breaking Capacity at 690 V AC: 25 kA
  • Rated Short Circuit Breaking Capacity at 690 V AC: 18.7 kA
  • Short Time Protection Adjustment Range: 360-6000 A
  • Rated Impulse Withstand Voltage: 8 kV
  • Electrical Life at Un in Service Cycles: 7000 cycles
  • Mechanical Life Service Cycles: 20000 cycles
  • Power Loss: 86.4 W
  • Dimensions (H x L x W): 268mm x 159mm x 210mm
  • Weight: 12.1 kg
Key Features
  • Electronic release trip unit for precise protection.
  • Integrated earth fault protection.
  • High short circuit breaking capacity of 70 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Any application requiring reliable circuit protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for high efficiency and reliability in electrical systems.
Warranty Information

Standard warranty applies, please check with the manufacturer for details.

Available Now

The Allen-Bradley 140G MCCB M Frame 70kA 3P 600A Electronic LSIG is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GM6I3D60-AU-140G-MCCB-M-Frame-Datasheet.pdf (140GM6I3D60-AU-140G-MCCB-M-Frame-Datasheet.pdf, 252 Kb) [Download]
