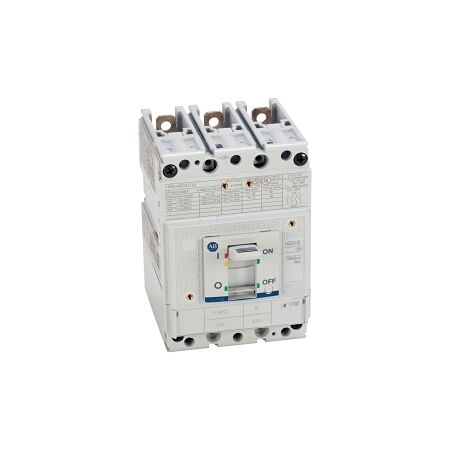

MCCB 60A 36kA Fixed Thermal Magnetic H Frame NHP

BRAND: Allen-Bradley
SKU: 140GH2C3C60
$370.50 List price: $461.70
+ −
30 Days Return Electricians Unlock Trade Access
MCCB with 60A rated current and 36kA short circuit capacity—ideal for industrial and commercial power distribution.
Technical Specifications
  • Rated ultimate short circuit breaking capacity: 36 kA at 415 V 50 Hz
  • Rated service short circuit breaking capacity: 36 kA at 415 V 50 Hz
  • Rated insulation voltage: 1000 V
  • Rated frequency: 50-60 Hz
  • Rated impulse withstand voltage: 8 kV
  • Electrical life: 8000 cycles
  • Mechanical life: 25000 cycles
  • Power loss: 13.3 W
  • DIN rail mounting optional
  • Dimensions (H x L x W): 130mm x 116mm x 90mm
  • Weight: 1.2 kg
Key Features
  • Rated current: 60 A
  • 36 kA short circuit breaking capacity
  • Thermal/magnetic release trip unit
  • Fixed thermal and magnetic trip curve
  • Suitable for isolation
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution and protection in manufacturing facilities
  • Commercial: Electrical systems in commercial buildings
  • General: Any application requiring reliable circuit protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for high performance in various environmental conditions.
Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 3P 60A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH2C3C60-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH2C3C60-AU-140G-MCCB-H-Frame-Datasheet.pdf, 293 Kb) [Download]
