MCCB 60A 3P | 36kA Breaking Capacity | Fixed Thermal Magnetic by NHP
MCCB with 60A current and 3 poles—ideal for industrial and commercial circuit protection. Built for reliability, with 36kA breaking capacity and fixed thermal magnetic trip unit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

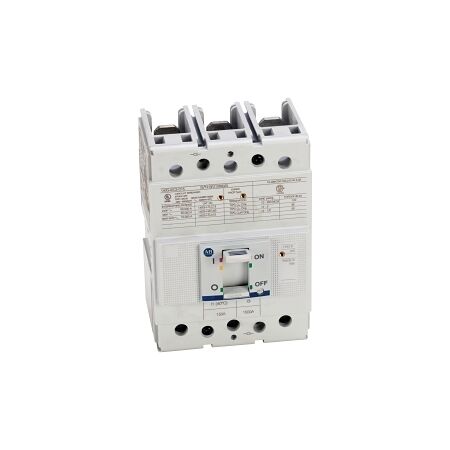

Product Name/Title: Allen-Bradley 140G MCCB I Frame 36kA 3P 60A Fixed Thermal Magnetic
Brand: NHP
SKU: 140GI2C3C60
Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 60A
Technical Specifications
- Rated Current: 60 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 36 kA
- Rated Service Short Circuit Breaking Capacity: 27 kA
- Type of Protection: Thermal/magnetic release
- Trip Curve: Fixed thermal, fixed magnetic
- Frame Size Rating: 225 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Suitable for Isolation: Yes
- Rated Short Circuit Breaking Capacity (ICU): 5 kA
- Rated Short Circuit Breaking Capacity (ICS): 2.5 kA
- Rated Impulse Withstand Voltage: 8 kV
- Reverse Connection of Supply Possible: Yes
- Electrical Life: 8000 cycles
- Power Loss: 11.7 W
- DIN Rail Mounting: Optional
- Mechanical Life: 25000 cycles
- Rated Surrounding Temperature: 40 °C
- Maximum Operating Temperature: 75 °C
- Storage Temperature: -40-80 °C
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 150mm x 101mm x 105mm
- Weight: 1.7 kg
Key Features
- Fixed thermal and magnetic trip unit for reliable protection.
- High breaking capacity of 36 kA at 415 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Manufacturing plants, machinery protection
- Commercial: Electrical distribution systems
- General: Any application requiring reliable circuit protection
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 140G MCCB I Frame 36kA 3P 60A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
