MCCB 630A 3P | 25kA Breaking Capacity | Adjustable Thermal & Magnetic by NHP
MCCB with 630A rated current and 25kA breaking capacity—ideal for industrial and commercial power distribution. Built for customized protection, with adjustable thermal and magnetic trip settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

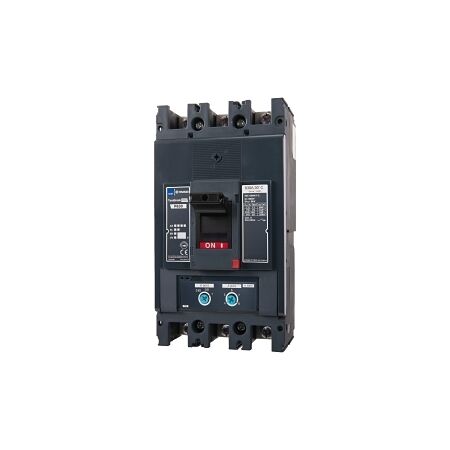

Product Name/Title: Terasaki TemBreak PRO MCCB 630 Frame 25kA 3P 630A Adj. Thermal Adj. Magnetic
Brand: NHP
SKU: P630E3630TM
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 25 kA
- Rated Service Short Circuit Breaking Capacity: 25 kA
- Type of Protection Trip Unit: Thermal/magnetic release
- Trip Curve: Adjustable thermal, adjustable magnetic
- Rated Insulation Voltage: 800 V
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 4000 cycles
- Mechanical Life: 15000 cycles
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature: 30 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude Before Derating: 2000 m
- Dimensions (H x L x W): 260mm x 151mm x 140mm
- Weight: 5 kg
Key Features
- Adjustable thermal and magnetic trip settings for customized protection.
- High breaking capacity of 25 kA for reliable circuit protection.
- Suitable for isolation and front-side connection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical installations in commercial buildings
- General: Protection of electrical circuits in various applications
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for energy efficiency, reducing power loss during operation.
Warranty Information
Standard warranty of 2 years against manufacturing defects.
Available Now
The Terasaki TemBreak PRO MCCB 630 Frame 25kA 3P 630A is available now for immediate purchase, ideal for industrial and commercial electrical installations.
