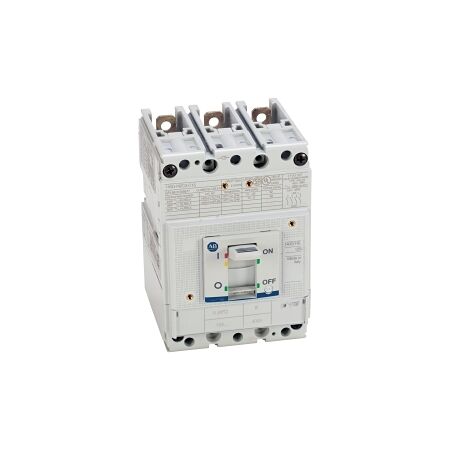

Allen-Bradley 140G MCCB H Frame 36kA 3P 63A Fixed Thermal Magnetic

MCCB 63A 3P 36kA | Fixed Thermal Magnetic | H Frame by NHP

BRAND: NHP

SKU: 140GH2C3C63

$347.70 List price: $461.70

+ −

30 Days Return Delivery Options

MCCB with 63A rated current and 36kA short circuit capacity—ideal for industrial and commercial power distribution. Built for reliable circuit protection, with fixed thermal magnetic trip unit.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB H Frame 36kA 3P 63A Fixed Thermal Magnetic

Brand: NHP

SKU: 140GH2C3C63

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 63A

Technical Specifications

Rated current: 63 A
Number of poles: 3
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 36 kA
Rated service short circuit breaking capacity: 36 kA
Rated frequency: 50-60 Hz
Rated insulation voltage: 1000 V
Rated short circuit breaking capacity at 690 V: 10 kA
Rated impulse withstand voltage: 8 kV
Electrical life: 8000 cycles
Mechanical life: 25000 cycles
Power loss: 14.4 W
Max operating temperature: 75 °C
Storage temperature: -40-80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 130mm x 116mm x 90mm
Weight: 1.2 kg

Key Features

Rated current: 63 A
36 kA short circuit breaking capacity
Thermal/magnetic release trip unit
Fixed thermal and magnetic trip curve
Suitable for isolation

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution and protection in manufacturing facilities
Commercial: Electrical systems in commercial buildings
General: Any application requiring reliable circuit protection

Standards & Compliance

Complies with relevant Australian standards for electrical safety.

Environmental Benefits

Designed for high performance and reliability in various environmental conditions.

Warranty Information

Standard warranty applies.

Available Now

The Allen-Bradley 140G MCCB H Frame 36kA 3P 63A Fixed Thermal Magnetic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GH2C3C63-AU-140G-MCCB-H-Frame-Datasheet.pdf (140GH2C3C63-AU-140G-MCCB-H-Frame-Datasheet.pdf, 293 Kb) [Download]
