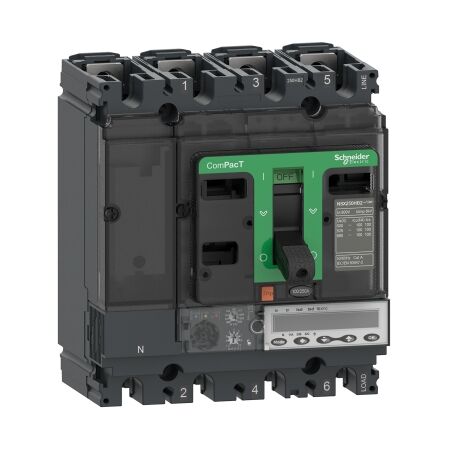

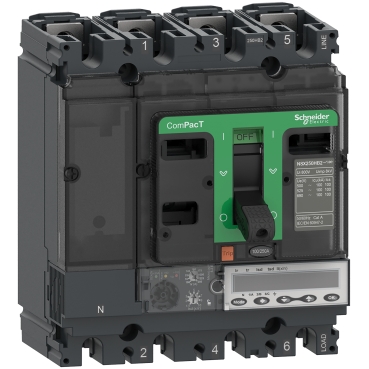

MCCB 75kA MicroLogic 5.2E Trip Unit | 250A Rated | 4 Pole Configuration | Advanced Energy Metering | @Pack of 1 | by Clipsal
MCCB 75kA MicroLogic 5.2E Trip Unit is designed for commercial and industrial electrical distribution systems, featuring a 250A rated current and a high breaking capacity of 75kA at 690VAC. With its advanced MicroLogic 5.2E electronic trip unit, it offers integrated energy metering and adjustable protection settings, making it ideal for main and sub-main switchboards in high fault level installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB 75kA MicroLogic 5.2E Trip Unit | 250A Rated | 4 Pole Configuration | Advanced Energy Metering | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHC25V45E250
Alternatively Known As: ComPacT NSX250HB1, 250A MCCB, MicroLogic 5.2E Circuit Breaker, 4 Pole MCCB 75kA, SCHC25V45E250
Technical Specifications
- Rated current: 250A
- Number of poles: 4
- Breaking capacity: 75kA at 690VAC
- Trip unit: MicroLogic 5.2E electronic
- Voltage rating: 690VAC
- Mounting: Fixed
- Standards: IEC 60947-2 compliant
- Integrated energy metering and protection functions
- Adjustable thermal and magnetic trip settings
- Dimensions (H x L x W): 255mm x 110mm x 140mm
- Weight: 6.5 kg
Key Features
- ComPacT NSX250HB1 molded case circuit breaker
- MicroLogic 5.2E electronic trip unit for advanced protection and energy metering
- High breaking capacity: 75kA at 690VAC
- 4 pole configuration
- Adjustable thermal and magnetic protection
- Integrated energy measurement and monitoring
- Compact design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Commercial and industrial electrical distribution systems
- Main and sub-main switchboards
- Protection of circuits in factories, data centers, and large buildings
- Suitable for high fault level installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy management and monitoring, reducing unnecessary power consumption
- Long operational life reduces replacement frequency and associated waste
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal MCCB 75kA MicroLogic 5.2E Trip Unit SCHC25V45E250 is available for immediate purchase. Ideal for commercial and industrial switchboards requiring high fault level protection and advanced energy monitoring.
