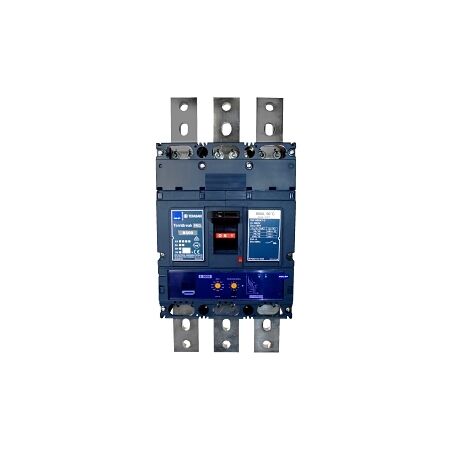

Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Basic Electronic

MCCB 800 Frame 100kA 3P 800A | Basic Electronic | High Breaking Capacity by NHP

BRAND: NHP

SKU: B800G3800BE

$5,991.80 List price: $7,956.30

+ −

30 Days Return Delivery Options

MCCB with 800A rated current and 100kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release trip unit and high efficiency.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Basic Electronic

Brand: NHP

SKU: B800G3800BE

Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker

Technical Specifications

Rated Current: 800 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 100 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 320-800 A
Instantaneous Protection Adjustment Range: 2000-9600 A
Rated Insulation Voltage: 800 V
Rated Short Circuit Breaking Capacity: 25 kA at 690 V AC
Power Loss: 280 W
Electrical Life: 4000 cycles
Mechanical Life: 10000 cycles
Max Vibration Acceleration: 19 m/s²
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 433mm x 145mm x 210mm
Weight: 9.1 kg

Key Features

Electronic release trip unit for precise protection.
High breaking capacity of 100 kA at 415 V.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical panels in commercial buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Designed for high efficiency, reducing energy loss during operation.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Basic Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical applications.

Non-Returnable & Non-Cancellable

B800G3800BE-AU-TBP-MCCB-800AF-Datasheet.pdf (B800G3800BE-AU-TBP-MCCB-800AF-Datasheet.pdf, 806 Kb) [Download]
