MCCB 800 Frame 125kA 3P 630A | Electronic Release | High Capacity by NHP
MCCB with 800 frame size and 125kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and high efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

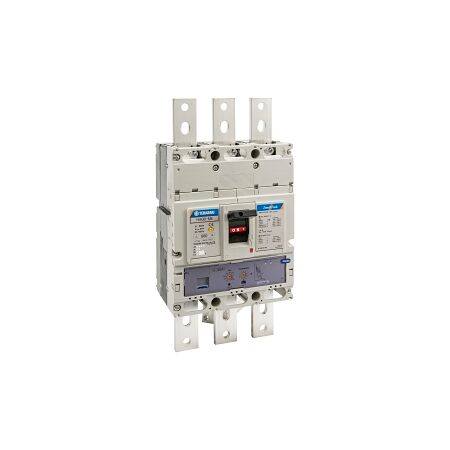

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 125kA 3P 630A Electronic
Brand: NHP
SKU: H800NE3630
Alternatively Known As: MCCB, Molded Case Circuit Breaker, Circuit Breaker 630A
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 125 kA
- Rated Service Short Circuit Breaking Capacity: 94 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 20 kA
- Short Time Withstand Current (ICW): 10 kA
- Short Time Protection Adjustment Range: 630-6300 A
- Rated Impulse Withstand Voltage: 8 kV
- AC Power Loss per Pole at In: 63.33 W
- Electrical Life at Un in Service Cycles: 4000 cycles
- Mechanical Life Service Cycles: 10000 cycles
- Max Vibration Acceleration: 19 m/s²
- Max Vibration Frequency Operational: 16.7 Hz
- Max Vibration Duration: 12 min
- Pollution Degree: 3
- Rated Surrounding Temperature without Derating: 50 °C
- Maximum Operating Temperature: 70 °C
- Storage Temperature: -10-70 °C
- Allowable Relative Humidity: 0-85 %
- Max Altitude before Derating: 2000 m
- Dimensions (H x L x W): 433mm x 182mm x 210mm
- Weight: 13.3 kg
Key Features
- Electronic release trip unit for precise protection.
- High short-circuit breaking capacity of 125 kA.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Large buildings and facilities
- General: Electrical protection in various applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for high efficiency and reliability in electrical systems.
Warranty Information
Standard warranty applies, please check with the manufacturer for details.
Available Now
The Terasaki TemBreak 2 MCCB 800 Frame 125kA 3P 630A Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical protection.
