MCCB 800 Frame 200kA 4P 630A | Electronic Release | High Breaking Capacity by NHP
MCCB with 800 frame size and 200kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection with electronic release and high reliability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

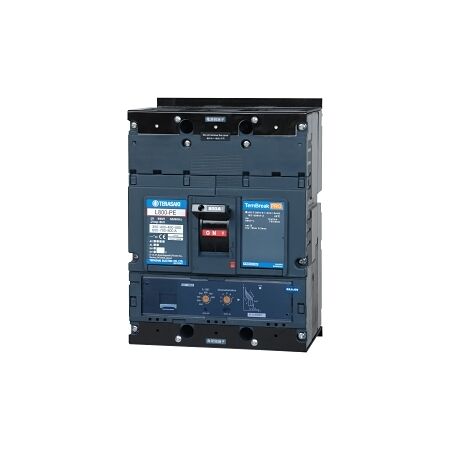

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 200kA 4P 630A Electronic
Brand: NHP
SKU: L800NE4630
Alternatively Known As: Terasaki Circuit Breaker, MCCB 630A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 4
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 200 kA
- Rated Service Short Circuit Breaking Capacity: 150 kA
- Type of Protection Trip Unit: Electronic release
- Trip Curve: LSI
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 252-630 A
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity at 690 V AC: 25 kA
- Short Time Withstand Current: 10 kA
- Cable Cross Section Range: 35-400 mm²
- Pollution Degree: 3
- Rated Surrounding Temperature Without Derating: 50 °C
- Dimensions (H x L x W): 273mm x 182mm x 280mm
- Weight: 16.8 kg
Key Features
- Electronic release for precise protection.
- High breaking capacity of 200 kA.
- Suitable for isolation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed to operate efficiently, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 800 Frame 200kA 4P 630A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
Non-Returnable & Non-Cancellable
