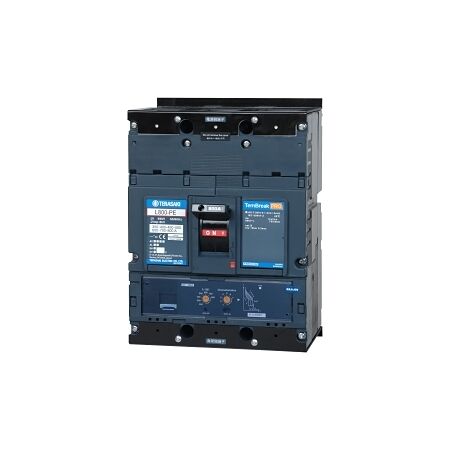

Terasaki TemBreak 2 MCCB 800 Frame 690V AC 70kA 3P 630A Rear Connect Electronic

MCCB 800 Frame 690V AC | 70kA 3P 630A | Rear Connect by NHP

BRAND: NHP

SKU: L800PE3630RC

$24,182.50 List price: $32,111.20

+ −

30 Days Return Delivery Options

MCCB with 800 frame size and 690V AC voltage, featuring 70kA short-circuit capacity and 3P 630A rating—ideal for industrial and commercial power distribution. Built for precise electronic trip settings and reverse connection.

Description
Attachments

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 690V AC 70kA 3P 630A Rear Connect Electronic

Brand: NHP

SKU: L800PE3630RC

Alternatively Known As: MCCB, Circuit Breaker, Power Switching Circuit Breaker

Technical Specifications

Rated Current: 630 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V AC
Trip Curve: LSI
Frame Size Rating: 800 A
Rated Short Circuit Breaking Capacity: 70 kA
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Power Loss: 190 W
Mechanical Life: 10,000 cycles
Electrical Life: 500 cycles
Max Vibration Acceleration: 19 m/s²
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 273mm x 304mm x 210mm
Weight: 13.3 kg

Key Features

Electronic release for precise trip settings.
High short-circuit breaking capacity of 70 kA.
Suitable for isolation and reverse connection of supply.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits in various applications

Standards & Compliance

Complies with AS/NZS 3000 for electrical installations.

Environmental Benefits

Designed for high efficiency, reducing energy loss and operational costs.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak 2 MCCB 800 Frame 690V AC 70kA 3P 630A Rear Connect Electronic is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

L800PE3630RC-AU-TB2-MCCB-Datasheet.pdf (L800PE3630RC-AU-TB2-MCCB-Datasheet.pdf, 1,050 Kb) [Download]
