MCCB 800 Frame 70kA 3P 630A | Electronic with Ground Fault | NHP
MCCB with 800 frame size and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for safety with electronic release and ground fault protection, offering adjustable overload and short circuit settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

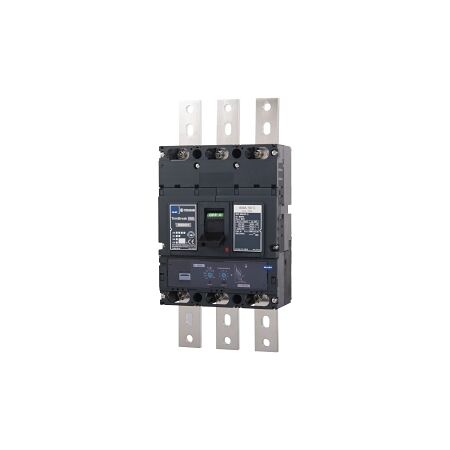

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 630A Basic Electronic with Ground Fault
Brand: NHP
SKU: B800H3630BEG
Alternatively Known As: MCCB, Circuit Breaker, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 630 A
- Number of Poles: 3
- Max Rated Operation Voltage: 690 V
- Rated Ultimate Short Circuit Breaking Capacity: 70 kA
- Rated Service Short Circuit Breaking Capacity: 50 kA
- Trip Curve: LSIG
- Frame Size Rating: 800 A
- Long Time Overload Protection Adjustment Range: 250-630 A
- Instantaneous Protection Adjustment Range: 1563-7560 A
- Rated Insulation Voltage: 800 V
- Rated Short Circuit Breaking Capacity (ICU): 25 kA
- Rated Short Circuit Breaking Capacity (ICS): 20 kA
- Short Time Withstand Current: 10 kA
- Rated Impulse Withstand Voltage: 8 kV
- Over Voltage Category: IV
- Electrical Life: 4000 cycles
- Mechanical Life: 10000 cycles
- Dimensions (H x L x W): 433mm x 145mm x 210mm
- Weight: 9.1 kg
Key Features
- Electronic release with integrated earth fault protection.
- High short circuit breaking capacity of 70 kA.
- Adjustable overload and short circuit protection settings.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical protection in commercial buildings
- General: Suitable for various electrical installations requiring circuit protection
Standards & Compliance
- Complies with AS/NZS IEC 60947.2 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving overall system performance.
Warranty Information
Standard warranty as per manufacturer’s policy.
Available Now
The Terasaki TemBreak PRO MCCB 800 Frame 70kA 3P 630A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.
