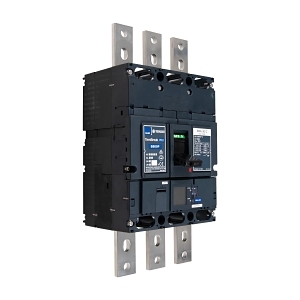

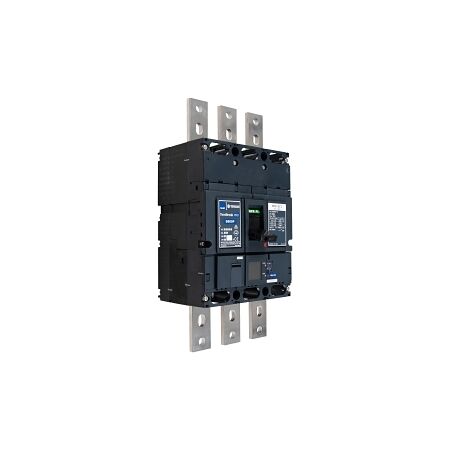

Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Amp Meter Electronic

MCCB 800A 3P | 100kA Breaking Capacity | Electronic Meter by NHP

BRAND: NHP

SKU: B800G3800SX

$8,040.20 List price: $10,676.30

+ −

30 Days Return Delivery Options

MCCB with 800A rated current and 100kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise protection, with electronic trip unit and integrated energy metering.

Description
Attachments

Product Name/Title: Terasaki TemBreak PRO MCCB 800 Frame 100kA 3P 800A Amp Meter Electronic

Brand: NHP

SKU: B800G3800SX

Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, Electronic Circuit Breaker

Technical Specifications

Rated Current: 800 A
Number of Poles: 3
Max Rated Operation Voltage: 690 V
Rated Ultimate Short Circuit Breaking Capacity: 100 kA
Rated Service Short Circuit Breaking Capacity: 50 kA
Trip Curve: LSI
Long Time Overload Protection Adjustment Range: 320-800 A
Instantaneous Protection Adjustment Range: 1600-9600 A
Rated Insulation Voltage: 800 V
Rated Frequency: 50-60 Hz
Electrical Life: 4000 cycles
Mechanical Life: 10000 cycles
Pollution Degree: 3
Max Operating Temperature: 70 °C
Dimensions (H x L x W): 433mm x 145mm x 210mm
Weight: 9.1 kg

Key Features

Electronic release trip unit for precise protection.
Integrated energy metering function for monitoring power usage.
High short-circuit breaking capacity of 100 kA.

Professional Installation Requirements

Installation by a qualified electrician is recommended to ensure compliance with safety standards.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical installations in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS IEC 60947.2 for safety and performance standards.

Environmental Benefits

Efficient energy management reduces overall power consumption.

Warranty Information

Standard warranty of 12 months against manufacturing defects.

Available Now

The Terasaki TemBreak PRO MCCB 800 Frame is available for immediate purchase, ideal for industrial and commercial electrical installations.

Non-Returnable & Non-Cancellable

B800G3800SX-AU-TBP-MCCB-800AF-Datasheet.pdf (B800G3800SX-AU-TBP-MCCB-800AF-Datasheet.pdf, 247 Kb) [Download]
