MCCB 800A 3P | 690V AC | 70kA Breaking Capacity | Rear Connect by NHP

BRAND: NHP
SKU: L800PE3800RC
$24,182.50 List price: $32,111.20
+ −
30 Days Return Delivery Options
MCCB with 800A current and 3 poles, offering 690V AC operation and 70kA breaking capacity—ideal for industrial and commercial power distribution. Built for precise electronic trip settings, with rear connect design for easy integration.

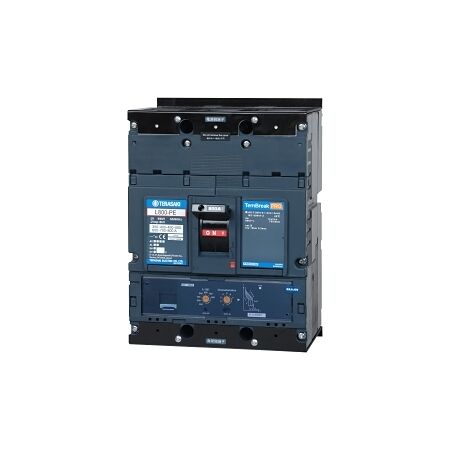

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 690V AC 70kA 3P 800A Rear Connect Electronic

Brand: NHP

SKU: L800PE3800RC

Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, TemBreak 2 Breaker

Technical Specifications
  • Rated Current: 800 A
  • Number of Poles: 3
  • Max Rated Operation Voltage: 690 V AC
  • Trip Unit Type: Electronic release
  • Trip Curve: LSI
  • Rated Short Circuit Breaking Capacity: 70 kA
  • Rated Insulation Voltage: 800 V
  • Rated Frequency: 50-60 Hz
  • Power Loss: 307 W
  • Mechanical Life: 10,000 cycles
  • Electrical Life: 500 cycles
  • Max Vibration Acceleration: 19 m/s²
  • Max Operating Temperature: 70 °C
  • Pollution Degree: 3
  • Dimensions (H x L x W): 273mm x 304mm x 210mm
  • Weight: 14.8 kg
Key Features
  • Electronic release for precise trip settings.
  • High breaking capacity of 70 kA for enhanced safety.
  • Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution in manufacturing facilities
  • Commercial: Electrical systems in large buildings
  • General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
  • Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
  • Designed for high efficiency, reducing energy loss and operational costs.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Terasaki TemBreak 2 MCCB 800 Frame is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable circuit protection.

Non-Returnable & Non-Cancellable

L800PE3800RC-AU-TB2-MCCB-Datasheet.pdf (L800PE3800RC-AU-TB2-MCCB-Datasheet.pdf, 898 Kb) [Download]
