MCCB 800A 4P | 200kA Breaking Capacity | Electronic Trip | 800 Frame by NHP
MCCB with 800A rated current and 4 poles—ideal for industrial and commercial power distribution. Built for precise protection with electronic trip unit and high 200kA breaking capacity.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

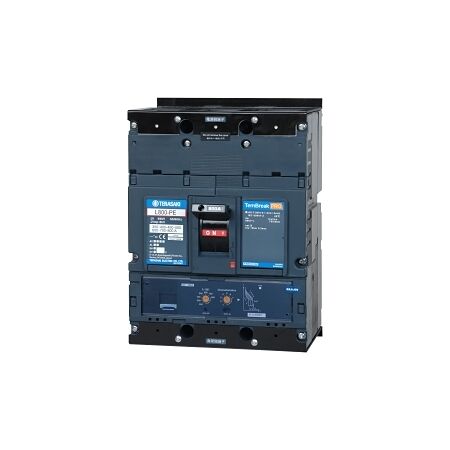

Product Name/Title: Terasaki TemBreak 2 MCCB 800 Frame 200kA 4P 800A Electronic
Brand: NHP
SKU: L800NE4800
Alternatively Known As: Terasaki Circuit Breaker, MCCB 800A, Electronic Circuit Breaker
Technical Specifications
- Rated Current: 800 A
- Number of Poles: 4
- Max Rated Voltage: 690 V
- Short Circuit Breaking Capacity: 200 kA
- Trip Curve: LSI
- Rated Frequency: 50-60 Hz
- Rated Insulation Voltage: 800 V
- Cable Cross Section Range: 35-400 mm²
- Max Operating Temperature: 70 °C
- Pollution Degree: 3
- Dimensions (H x L x W): 273mm x 140mm x 280mm
- Weight: 18.8 kg
Key Features
- Electronic release trip unit for precise protection.
- High breaking capacity of 200 kA at 415 V.
- Suitable for isolation and reverse connection of supply.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution in manufacturing facilities
- Commercial: Electrical systems in large buildings
- General: Protection of electrical circuits from overloads and short circuits
Standards & Compliance
- Complies with AS/NZS 60950 for safety and performance standards.
Environmental Benefits
- Designed for high efficiency, reducing energy loss and improving system reliability.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Terasaki TemBreak 2 MCCB 800 Frame 200kA 4P 800A Electronic is available now for immediate purchase. Ideal for industrial and commercial applications requiring robust circuit protection.
