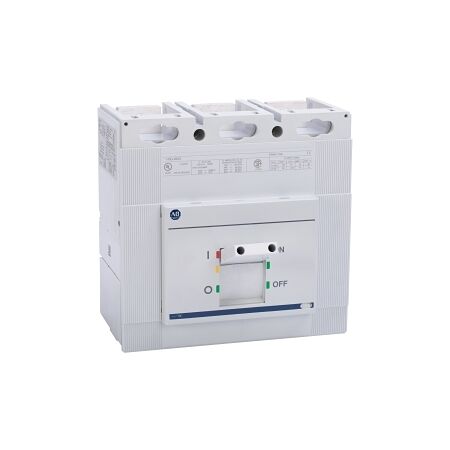

Allen-Bradley 140G MCCB M Frame Less Trip Unit 65kA 4P

MCCB 800A 4P | 65kA Breaking Capacity | 690V Rated by NHP

BRAND: NHP

SKU: 140GM6X4

$3,904.50 List price: $5,184.70

+ −

30 Days Return Delivery Options

MCCB with 800A rated current and 4 poles—ideal for industrial and commercial power distribution. Built for high breaking capacity of 65kA at 415V, ensuring reliable circuit protection.

Description
Attachments

Product Name/Title: Allen-Bradley 140G MCCB M Frame Less Trip Unit 65kA 4P

Brand: NHP

SKU: 140GM6X4

Alternatively Known As: Moulded Case Circuit Breaker, MCCB, Circuit Breaker 800A

Technical Specifications

Rated current: 800 A
Number of poles: 4
Max rated operation voltage: 690 V
Rated ultimate short circuit breaking capacity: 65 kA
Rated service short circuit breaking capacity: 70 kA
Rated frequency: 50-60 Hz
Rated insulation voltage: 1000 V
Rated short circuit breaking capacity at 690 V: 25 kA
Rated impulse withstand voltage: 8 kV
Electrical life: 7000 cycles
Mechanical life: 20000 cycles
Max operating temperature: 75 °C
Storage temperature: -40 to 80 °C
Max altitude before derating: 2000 m
Dimensions (H x L x W): 159mm x 103.5mm x 280mm
Weight: 10 kg

Key Features

Rated current: 800 A
Four poles for versatile applications
High breaking capacity of 65 kA at 415 V

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power distribution in manufacturing facilities
Commercial: Electrical systems in large buildings
General: Protection of electrical circuits from overloads and short circuits

Standards & Compliance

Complies with AS/NZS 60947 for safety and performance standards.

Environmental Benefits

Designed for high efficiency and reliability in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Allen-Bradley 140G MCCB M Frame Less Trip Unit 65kA 4P is available now for immediate purchase. Ideal for industrial and commercial electrical systems.

Non-Returnable & Non-Cancellable

140GM6X4-AU-140G-MCCB-M-Frame-Datasheet.pdf (140GM6X4-AU-140G-MCCB-M-Frame-Datasheet.pdf, 248 Kb) [Download]
