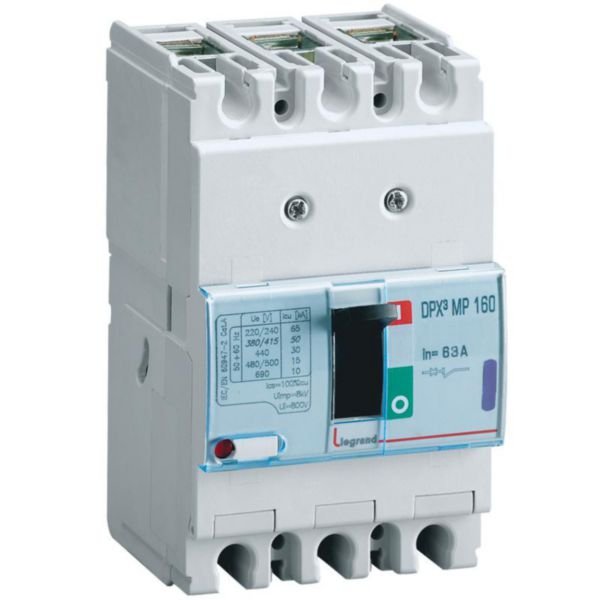

MCCB DPX3 160 3P 63A 16kA Circuit Breaker | IP30 Rated | DIN Rail Mountable | @Each of 1 | by Legrand
MCCB DPX3 160 Circuit Breaker with a rated current of 63A and a short-circuit breaking capacity of 16kA is perfect for industrial electrical panels and commercial power distribution. Designed for reliable circuit protection, this device features a built-in fixed construction and is suitable for DIN rail mounting, ensuring safety and compliance in your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current Iu: 63 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 16 kA
- Overload release current setting: 0-0 A
- Adjustment range short-term delayed short-circuit release: 630 A
- Adjustment range undelayed short-circuit release: 630 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection of main circuit: Screw connection
- Suitable for DIN rail (top hat rail) mounting: Yes
- Number of auxiliary contacts as normally closed contact: 1
- Number of auxiliary contacts as change-over contact: 1
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 140mm x 75mm x 90mm
- Weight: 2.5 kg
Key Features
- Rated permanent current: 63 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity: 16 kA at 400 V, 50 Hz
- Overload release current setting: 0-0 A
- Adjustment range for short-term delayed and undelayed short-circuit release: 630 A
- Built-in fixed device construction
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Auxiliary contacts: 1 normally closed, 1 change-over
- Switched-off indicator included
- Integrated under voltage release
- 3 poles with front side connection
- Wing knob control element
- Complete device with protection unit
- Degree of protection: IP30
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Commercial power distribution
- Switchboards and power cabinets requiring reliable circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Legrand MCCB DPX3 160 ONLY MAG 3P 63A 16KA is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
