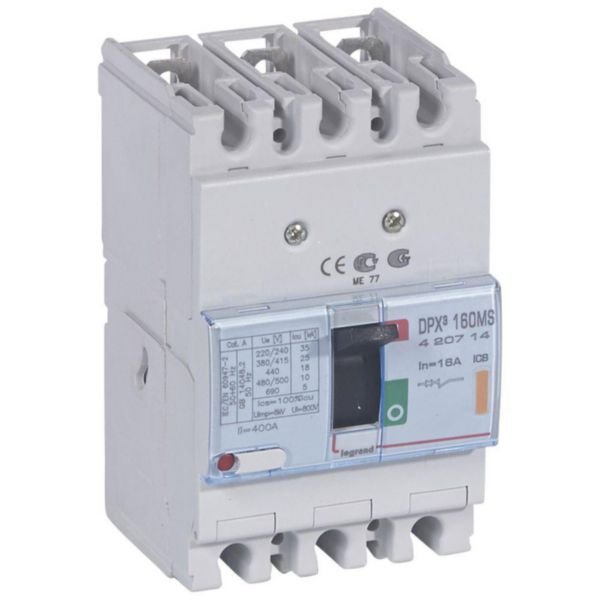

MCCB DPX3 160 ONLY MAG 3P 16A 25KA | 25kA Short-Circuit Capacity | IP30 Rated | @Each of 1 | by Legrand
MCCB DPX3 160 ONLY MAG 3P 16A 25KA is designed for robust electrical protection in industrial and commercial settings. With a short-circuit breaking capacity of 25kA and rated for 16A, it ensures safety and reliability. Ideal for use in electrical panels and switchboards, this circuit breaker features a screw connection and is suitable for DIN rail mounting, making installation straightforward for qualified electricians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX3 160 ONLY MAG 3P 16A 25KA | 25kA Short-Circuit Capacity | IP30 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420714
Alternatively Known As: MCCB DPX3 160, Legrand DPX3 Circuit Breaker, 3 Pole MCCB 16A 25kA, Moulded Case Circuit Breaker
Technical Specifications
- Rated permanent current (Iu): 16 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 25 kA
- Overload release current setting: 0-0 A
- Adjustment range short-term delayed short-circuit release: 400 A
- Adjustment range undelayed short-circuit release: 400 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection of main circuit: Screw connection
- Suitable for DIN rail (top hat rail) mounting: Yes
- Number of auxiliary contacts as normally closed contact: 1
- Number of auxiliary contacts as change-over contact: 1
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 120mm x 75mm x 90mm
- Weight: 1.5 kg
Key Features
- Rated permanent current: 16 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity: 25 kA at 400 V, 50 Hz
- Overload release current setting: 0-0 A
- Adjustment range for short-term delayed and undelayed short-circuit release: 400 A
- Built-in fixed device construction
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- 1 normally closed auxiliary contact and 1 change-over auxiliary contact
- Switched-off indicator included
- Integrated under voltage release
- 3 poles with front side connection
- Wing knob control element
- Complete device with protection unit
- Degree of protection: IP30
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Commercial switchboards
- Power distribution cabinets
- Protection of electrical circuits in buildings
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by preventing electrical faults and downtime
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand MCCB DPX3 160 ONLY MAG 3P 16A 25KA is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
