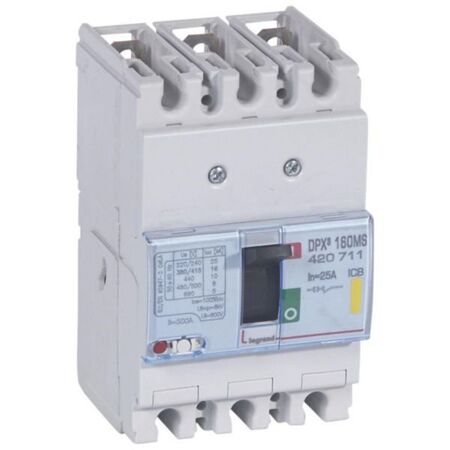

MCCB DPX3 160 ONLY MAG 3P 25A 16KA | 16kA Short-Circuit Capacity | DIN Rail Mountable | @EA of 1 | by Legrand
MCCB DPX3 160 ONLY MAG 3P 25A 16KA is designed for reliable circuit protection in industrial and commercial applications. With a short-circuit breaking capacity of 16kA and rated for 220-690V, this circuit breaker ensures safety and efficiency in power distribution. Ideal for switchboards and electrical panels, it features a built-in fixed device construction and is suitable for DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX3 160 ONLY MAG 3P 25A 16KA | 16kA Short-Circuit Capacity | DIN Rail Mountable | @EA of 1 | by Legrand
Brand: Legrand
SKU: 420711
Alternatively Known As: MCCB DPX3 160, Legrand 3P Circuit Breaker, 25A MCCB, 16kA Moulded Case Circuit Breaker
Technical Specifications
- Rated permanent current (Iu): 25 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 16 kA
- Overload release current setting: 0-0 A
- Adjustment range short-term delayed short-circuit release: 400-400 A
- Adjustment range undelayed short-circuit release: 400-400 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection of main circuit: Screw connection
- Suitable for DIN rail (top hat rail) mounting: Yes
- Number of auxiliary contacts as normally closed contact: 1
- Number of auxiliary contacts as change-over contact: 1
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 120mm x 75mm x 90mm
- Weight: 2.5 kg
Key Features
- Rated permanent current: 25 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity: 16 kA at 400 V, 50 Hz
- Built-in fixed device construction
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Includes 1 normally closed and 1 change-over auxiliary contact
- Switched-off indicator and integrated under voltage release
- 3 poles with front side connection
- Wing knob control element
- Degree of protection: IP30
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Commercial power distribution
- Switchboards and power cabinets requiring reliable circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting circuits and preventing overloads
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects and performance issues.
Available Now
The Legrand MCCB DPX3 160 ONLY MAG 3P 25A 16KA is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
