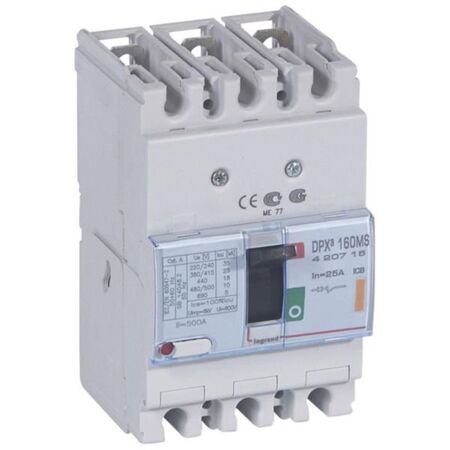

MCCB DPX3 160 Only MAG 3P 25A | 25kA Short-Circuit Capacity | IP30 Rated | @EA of 1 | by Legrand
MCCB DPX3 160 Only MAG 3P 25A is designed for reliable circuit protection in industrial and commercial applications. With a short-circuit breaking capacity of 25kA and a rated voltage range of 220-690V, this circuit breaker ensures safety and efficiency. Ideal for installation in electrical panels and switchboards, it features a built-in fixed device construction and is suitable for DIN rail mounting.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX3 160 Only MAG 3P 25A | 25kA Short-Circuit Capacity | IP30 Rated | @EA of 1 | by Legrand
Brand: Legrand
SKU: 420715
Alternatively Known As: Moulded Case Circuit Breaker, MCCB DPX3 160, 3 Pole Circuit Breaker, 25A MCCB, Legrand DPX3 MCCB
Technical Specifications
- Rated permanent current (Iu): 25 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 25 kA
- Overload release current setting: 0-0 A
- Adjustment range short-term delayed short-circuit release: 400 A
- Adjustment range undelayed short-circuit release: 400 A
- Device construction: Built-in fixed device
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (change-over): 1
- Switched-off indicator: Yes
- Integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 140mm x 75mm x 90mm
- Weight: 2.5 kg
Key Features
- Rated permanent current: 25 A
- Rated voltage range: 220-690 V
- Short-circuit breaking capacity: 25 kA at 400 V, 50 Hz
- Built-in fixed device construction
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Includes 1 normally closed and 1 change-over auxiliary contact
- Switched-off indicator and integrated under voltage release
- 3 poles with front side connection
- Wing knob control element
- Complete device with protection unit
- Degree of protection: IP30
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Commercial power distribution boards
- Switchboards and power cabinets requiring reliable circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting circuits and preventing overloads
Warranty Information
Legrand offers a standard 1-year warranty covering manufacturing defects and workmanship.
Available Now
The Legrand MCCB DPX3 160 Only MAG 3P 25A 25KA is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
