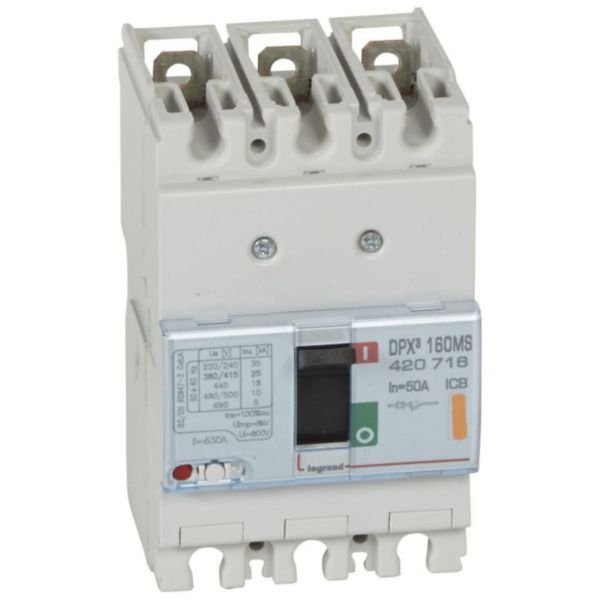

MCCB DPX3 160 ONLY MAG 3P 50A 25KA | 25kA Short-Circuit Capacity | IP30 Rated | @Each of 1 | by Legrand
MCCB DPX3 160 ONLY MAG 3P 50A 25KA is designed for reliable circuit protection in industrial and commercial applications. With a rated permanent current of 50A and a short-circuit breaking capacity of 25kA, this circuit breaker ensures safety and compliance in electrical panels. Its IP30 rating and DIN rail mounting make it ideal for switchboards and power distribution systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX3 160 ONLY MAG 3P 50A 25KA | 25kA Short-Circuit Capacity | IP30 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420716
Alternatively Known As: MCCB DPX3 160, Legrand 3 Pole Circuit Breaker, 50A MCCB, 25kA Moulded Case Circuit Breaker
Technical Specifications
- Rated permanent current (Iu): 50 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 25 kA
- Overload release current setting: 0-0 A
- Adjustment range short-term delayed short-circuit release: 500-500 A
- Adjustment range undelayed short-circuit release: 500-500 A
- Device construction: Built-in fixed device
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (change-over): 1
- Switched-off indicator: Yes
- Integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 120mm x 75mm x 90mm
- Weight: 2.5 kg
Key Features
- Rated permanent current: 50 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity: 25 kA at 400 V, 50 Hz
- Built-in fixed device construction
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Includes 1 normally closed and 1 change-over auxiliary contact
- Switched-off indicator and integrated under voltage release
- 3 poles with front side connection
- Wing knob control element
- Degree of protection: IP30
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels
- Commercial power distribution
- Switchboards and power cabinets requiring reliable circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Legrand offers a standard 1-year warranty covering manufacturing defects and workmanship.
Available Now
The Legrand MCCB DPX3 160 ONLY MAG 3P 50A 25KA is available for immediate purchase, ideal for industrial and commercial electrical distribution applications.
