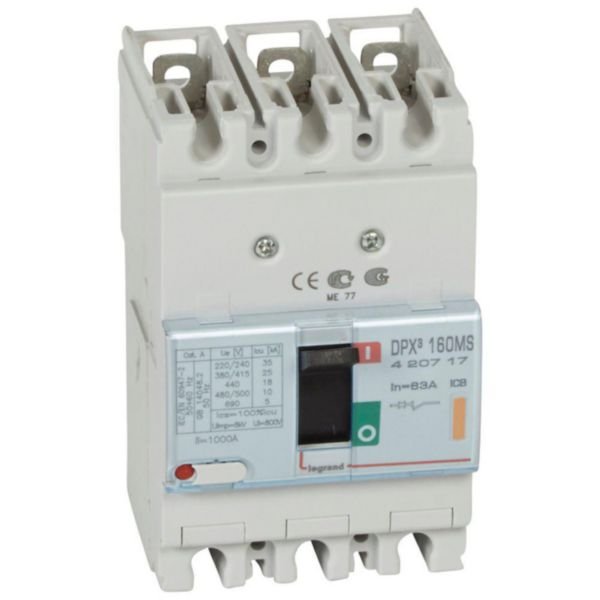

MCCB DPX3 160 ONLY MAG 3P 63A | 25kA Short-Circuit Capacity | IP30 Rated | @Each of 1 | by Legrand
MCCB DPX3 160 ONLY MAG 3P 63A is designed for robust electrical protection in industrial and commercial applications. With a short-circuit breaking capacity of 25kA and rated for 220-690V, this circuit breaker ensures safety and reliability. Ideal for installation in electrical panels and switchboards, it features a screw connection and is suitable for DIN rail mounting, making it a versatile choice for any electrical system.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX3 160 ONLY MAG 3P 63A | 25kA Short-Circuit Capacity | IP30 Rated | @Each of 1 | by Legrand
Brand: Legrand
SKU: 420717
Alternatively Known As: Moulded Case Circuit Breaker, MCCB DPX3 160, 3 Pole Circuit Breaker 63A, Legrand DPX3 MCCB
Technical Specifications
- Rated permanent current Iu: 63 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 25 kA
- Overload release current setting: 0-0 A
- Adjustment range short-term delayed short-circuit release: 630-630 A
- Adjustment range undelayed short-circuit release: 630-630 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection of main circuit: Screw connection
- Suitable for DIN rail (top hat rail) mounting: Yes
- Number of auxiliary contacts as normally closed contact: 1
- Number of auxiliary contacts as change-over contact: 1
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 120mm x 75mm x 90mm
- Weight: 2.5 kg
Key Features
- Rated permanent current: 63 A
- Rated voltage: 220-690 V
- Short-circuit breaking capacity: 25 kA at 400 V, 50 Hz
- Built-in fixed device construction
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Includes 1 normally closed and 1 change-over auxiliary contact
- Switched-off indicator and integrated under voltage release
- 3 poles with front side connection
- Wing knob control element
- Degree of protection: IP30
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical panels and switchboards
- Commercial power distribution systems
- Protection of electrical circuits in buildings and facilities
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
3 years warranty against manufacturing defects.
Available Now
The Legrand MCCB DPX3 160 ONLY MAG 3P 63A 25KA is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
