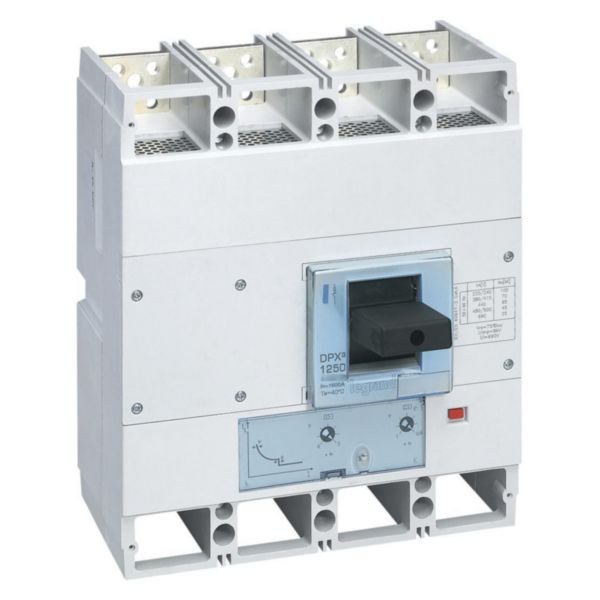

MCCB DPX³ 1600 Circuit Breaker | 500A Rated Current | 70kA Breaking Capacity | Front Side Screw Connection | @EA of 1 | by Legrand
MCCB DPX³ 1600 Circuit Breaker with a robust 500A rated current and a high breaking capacity of 70kA at 400V, designed for industrial and commercial electrical distribution. Featuring a front side screw connection and integrated undervoltage release, this circuit breaker ensures reliable protection for your electrical circuits, making it ideal for switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX³ 1600 Circuit Breaker | 500A Rated Current | 70kA Breaking Capacity | Front Side Screw Connection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 422279
Alternatively Known As: Molded Case Circuit Breaker, MCCB DPX3 1600, Legrand DPX3 1600 Circuit Breaker, 4P 500A MCCB
Technical Specifications
- Rated permanent current (Iu): 500 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 400-500 A
- Adjustment range undelayed short-circuit release: 2500-5000 A
- Number of poles: 4
- Type of electrical connection: Screw connection
- Position of connection for main current circuit: Front side
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator: Yes
- With integrated undervoltage release: Yes
- Type of control element: Wing knob
- Degree of protection (IP): IP30
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Suitable for DIN rail mounting: No
- Motor drive integrated: No
- Motor drive optional: Yes
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 15 kg
Key Features
- 4-pole molded case circuit breaker with 500A rated current
- High breaking capacity of 70kA at 400V, 50Hz
- Front side screw connection for main circuit
- Toggle control with wing knob
- Integrated undervoltage release and switched-off indicator
- Not suitable for DIN rail mounting
- Complete device with protection unit included
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical distribution panels
- Commercial switchboards and power cabinets
- Protection of electrical circuits in modular switch systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting circuits from overloads and faults
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years depending on region and purchase terms.
Available Now
The Legrand MCCB DPX³ 1600 TM 4P 500A 70KA circuit breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
