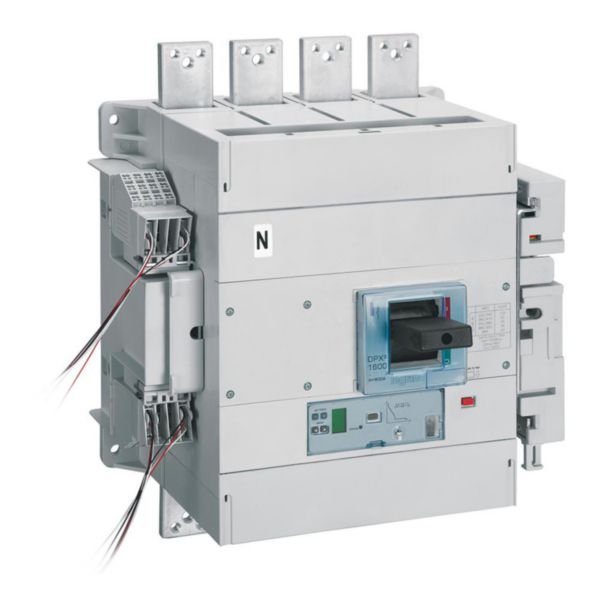

MCCB DPX³ 1600 | Electronic Release | 4P | Icu 70 kA | @EA of 1 | by Legrand
MCCB DPX³ 1600 is a high-performance circuit breaker featuring an electronic release and a breaking capacity of 70 kA at 400 V. Designed for industrial, commercial, and residential applications, it ensures reliable protection and control of low voltage electrical circuits. With a rated current of 1250 A and integrated earth fault protection, this device enhances electrical safety and minimizes the risk of faults.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current (Iu): 1250 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 500-1250 A
- Adjustment range short-term delayed short-circuit release: 750-12500 A
- Adjustment range undelayed short-circuit release: 15000 A
- Number of poles: 4
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: Yes
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Degree of protection (IP): IP30
- Contains batteries (lithium, non-rechargeable) for electronic release
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 35 kg
Key Features
- Moulded case circuit breaker (MCCB) for switching, control, isolation, and protection of low voltage electrical lines
- Electronic SG release with adjustable settings for Ir, Isd, Ig, tr, tsd, tg
- Instantaneous protection with If = 20 kA
- Breaking capacity Icu 70 kA at 400 V~
- 4 poles with rated current 1250 A
- Green indicator lamp and connector for test unit
- Sealable adjustment and logic dynamic selectivity
- Supplied with connection plates for bars and insulated phase barriers
- Integrated earth fault protection and under voltage release
- Screw connection for main circuit
- IP30 degree of protection
