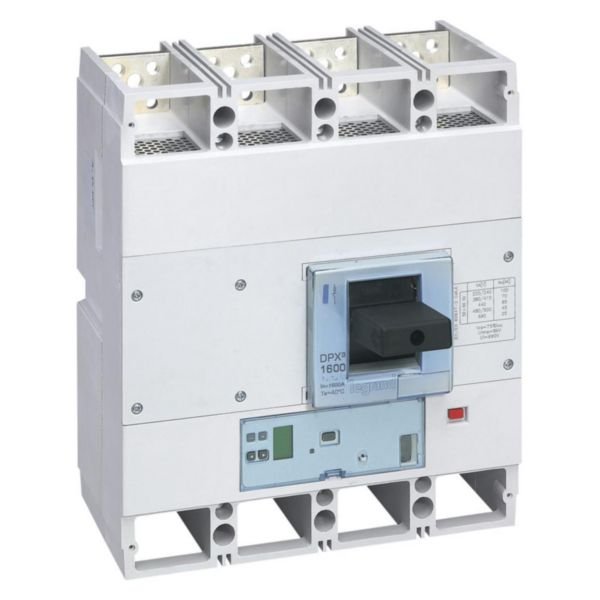

MCCB DPX³ 1600 | Electronic Release S2 | 4P | Icu 70 kA | @Each of 1 | by Legrand
MCCB DPX³ 1600 is a high-performance electronic release circuit breaker designed for reliable protection and control in industrial and commercial applications. With a breaking capacity of 70 kA at 400 V and a rated current of 630 A, it ensures safety and efficiency in electrical distribution panels. Ideal for qualified electricians, this device features adjustable settings and an IP30 rating for enhanced durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DPX³ 1600 | Electronic Release S2 | 4P | Icu 70 kA | @Each of 1 | by Legrand
Brand: Legrand
SKU: 422329
Alternatively Known As: MCCB DPX3 1600 S2, Legrand DPX3 1600 MCCB, 4P 630A MCCB, Electronic release circuit breaker
Technical Specifications
- Rated permanent current (Iu): 630 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 252-630 A
- Adjustment range short-term delayed short-circuit release: 378-6300 A
- Adjustment range undelayed short-circuit release: 15000 A
- Device construction: Built-in fixed built-in technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 4
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Motor drive optional: Yes
- Degree of protection (IP): IP30
- Contains Batteries and/or Accumulator: Yes (2 lithium batteries CR1616)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 25 kg
Key Features
- Moulded case circuit breaker (MCCB) for switching, control, isolation, and protection
- Electronic release S2 with adjustable Ir, Isd, tr, tsd settings
- Instantaneous protection with If = 20 kA
- Breaking capacity Icu 70 kA at 400 V~
- 4 poles with 630 A rated current
- Green indicator lamp and connector for test unit
- Supplied with connection plates for bars and insulated phase barriers
- Sealable adjustment and can be mounted on plate in XL³ cabinets
- 3 auxiliary change-over contacts and integrated under voltage release
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical distribution panels
- Commercial and residential switchboards
- Protection and control of low voltage electrical circuits
- Power cabinets requiring high breaking capacity circuit breakers
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
