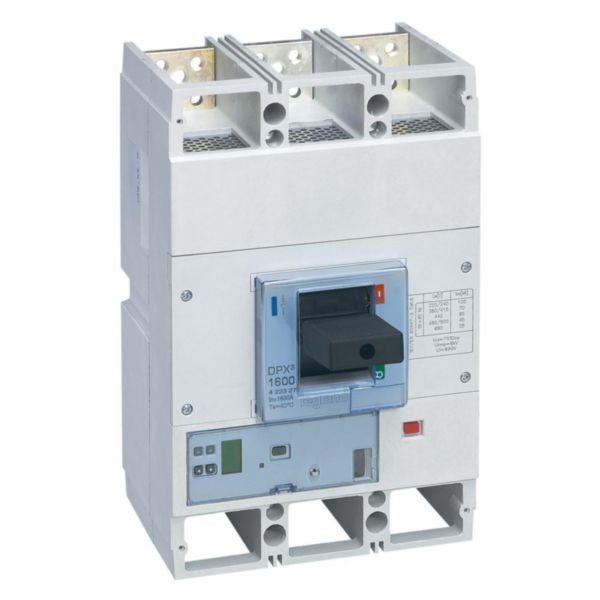

MCCB DPX³ 1600 S2 Electronic Release | 3-Pole Design | 70 kA Breaking Capacity | @Each of 1 | by Legrand
MCCB DPX³ 1600 S2 electronic release is designed for reliable protection and control of low voltage electrical circuits. With a rated current of 1600 A and a breaking capacity of 70 kA at 400 V~, this 3-pole circuit breaker is ideal for industrial and commercial applications. Its adjustable overload and short-circuit protection ensure safety and compliance, making it perfect for electrical distribution panels and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current (Iu): 1600 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 640-1600 A
- Adjustment range short-term delayed short-circuit release: 960-16000 A
- Adjustment range undelayed short-circuit release: 20000 A
- Number of poles: 3
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator and integrated under voltage release
- Degree of protection: IP30
- Contains lithium battery (non-rechargeable) for internal electronics
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 35 kg
Key Features
- Moulded case circuit breaker (MCCB) for switching, control, isolation, and protection of low voltage electrical lines
- Electronic S2 release with adjustable overload and short-circuit protection
- Breaking capacity Icu 70 kA at 400 V~
- Rated current 1600 A with adjustable overload release current from 640 to 1600 A
- 3-pole design with screw connection for main circuit
- Includes connection plates for bars and insulated phase barriers
- Sealable adjustment and green indicator lamp for status
- Compatible with residual current relays and auxiliaries
- IP30 degree of protection
- Can be mounted on plate in XL³ cabinets and enclosures
Professional Installation Requirements
- Installation must be performed by a qualified electrician experienced with high current MCCBs to ensure compliance with electrical safety standards and correct integration into switchboards.
Applications
- Industrial electrical distribution panels
- Commercial and large residential switchboards
- Protection and control of low voltage electrical circuits
- Power distribution in factories and large buildings
Standards & Compliance
- Complies with AS/NZS 60947-2 – Low-voltage switchgear and controlgear - Circuit-breakers
Environmental Benefits
- Enhances electrical safety reducing risk of faults and fires
- Supports energy efficiency by protecting electrical systems from damage
- Durable design reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
