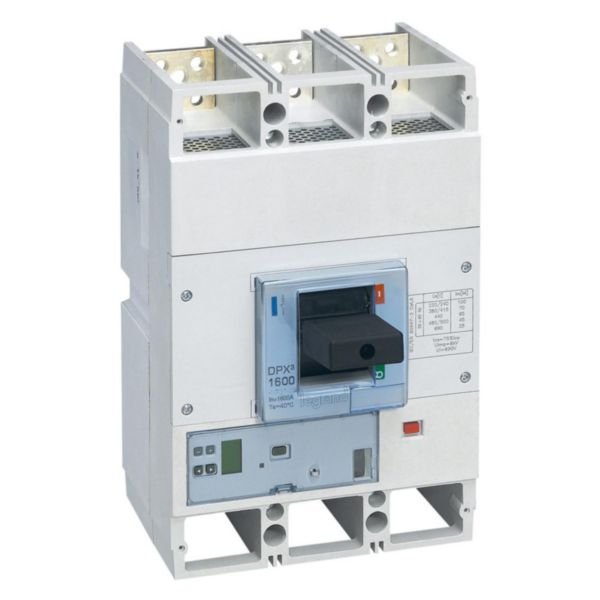

MCCB DPX³ 1600 | SG Electronic Release | 3-Pole Design | 70 kA Breaking Capacity | @Each of 1 | by Legrand
MCCB DPX³ 1600 is a robust moulded case circuit breaker designed for low voltage electrical protection. With a rated current of 800 A and a breaking capacity of 70 kA at 400 V~, it’s perfect for industrial and commercial applications. The electronic release features adjustable overload settings, ensuring optimal safety and performance in electrical distribution panels and switchboards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current (Iu): 800 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 320-800 A
- Adjustment range short-term delayed short-circuit release: 480-8000 A
- Adjustment range undelayed short-circuit release: 15000 A
- Number of poles: 3
- Integrated earth fault protection: Yes
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 3
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Degree of protection (IP): IP30
- Contains batteries: Yes (2 lithium batteries CR1616 included)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 25 kg
Key Features
- Moulded case circuit breaker (MCCB) for switching, control, isolation, and protection of low voltage electrical lines
- Electronic release with adjustable settings for overload and short-circuit protection
- Breaking capacity of 70 kA at 400 V~
- Rated current of 800 A with adjustable overload release current from 320-800 A
- 3-pole design with integrated earth fault protection
- Green indicator lamp and connector for test unit
- Sealable adjustment and logic dynamic selectivity
- Supplied with connection plates for bars and insulated phase barriers
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
- Industrial electrical distribution panels
- Commercial and residential switchboards
- Protection and control of low voltage electrical circuits
- Power cabinets and modular switchboards
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Supports energy efficiency by protecting electrical systems from damage
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DPX³ 1600 with SG electronic release is available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
