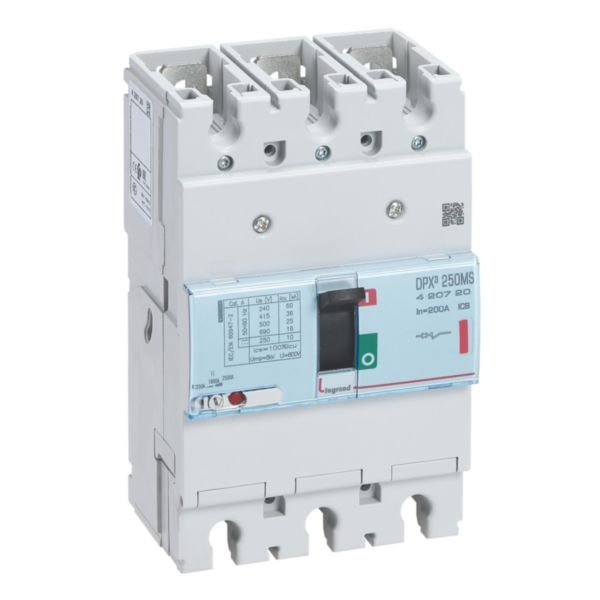

MCCB DPX3 250 3P 200A 36kA Circuit Breaker IP30 Rated DIN Rail Mountable Legrand

BRAND: Legrand
SKU: 420720
$731.10 List price: $911.00
1 EA ($731.10 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The MCCB DPX3 250 3P 200A 36kA Circuit Breaker is designed for robust electrical protection in industrial and commercial settings.
Technical Specifications
  • Rated permanent current Iu: 200 A
  • Rated voltage: 220-690 V
  • Rated short-circuit breaking capacity Icu at 400 V, 50 Hz: 36 kA
  • Overload release current setting: 0-0 A
  • Adjustment range short-term delayed short-circuit release: 1000-2000 A
  • Adjustment range undelayed short-circuit release: 1000-2000 A
  • Device construction: Built-in fixed device
  • Integrated earth fault protection: No
  • Type of electrical connection of main circuit: Screw connection
  • Suitable for DIN rail mounting: Yes
  • Number of auxiliary contacts as normally closed contact: 1
  • Number of auxiliary contacts as change-over contact: 1
  • With switched-off indicator: Yes
  • With integrated under voltage release: Yes
  • Number of poles: 3
  • Position of connection for main current circuit: Front side
  • Type of control element: Wing knob
  • Complete device with protection unit: Yes
  • Motor drive integrated: No
  • Motor drive optional: Yes
  • Degree of protection (IP): IP30
  • Dimensions (H x L x W): 120mm x 75mm x 90mm
  • Weight: 5 kg
Key Features
  • Rated permanent current: 200 A
  • Rated voltage: 220-690 V
  • Short-circuit breaking capacity: 36 kA at 400 V, 50 Hz
  • Overload release current setting: 0-0 A
  • Short-term delayed short-circuit release adjustment: 1000-2000 A
  • Undelayed short-circuit release adjustment: 1000-2000 A
  • Built-in fixed device construction
  • Screw connection for main circuit
  • Suitable for DIN rail (top hat rail) mounting
  • 1 normally closed auxiliary contact and 1 change-over auxiliary contact
  • Switched-off indicator included
  • Integrated under voltage release
  • 3 poles with front side connection
  • Wing knob control element
  • Complete device with protection unit
  • IP30 degree of protection
Professional Installation Requirements
  • Installation must be performed by a licensed electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
  • Industrial electrical distribution panels
  • Commercial and residential switchboards
  • Power protection in electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhances electrical safety reducing risk of fire and equipment damage
  • Supports energy efficiency by protecting electrical circuits from overloads
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

The Legrand MCCB DPX3 250 3P 200A 36kA is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
