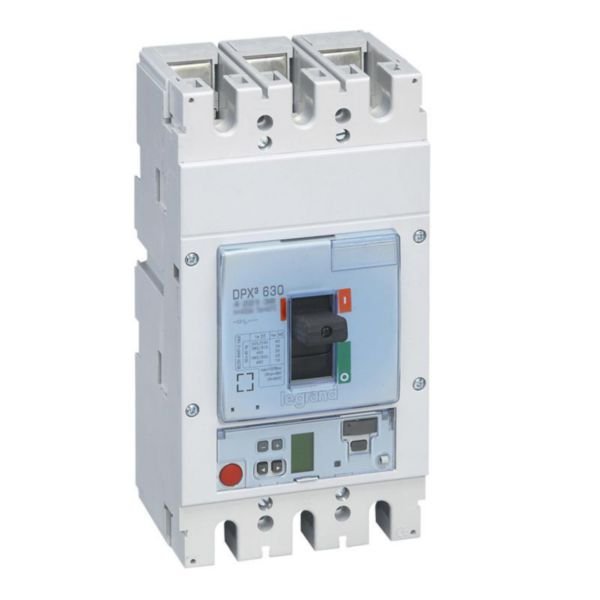

MCCB DPX³ 630 | Electronic Release | 36 kA Breaking Capacity | 3 Poles | @Each of 1 | by Legrand
MCCB DPX³ 630 is a high-performance moulded case circuit breaker designed for reliable protection and control of low voltage electrical circuits. With an electronic release and a breaking capacity of 36 kA at 400 V, it’s perfect for industrial and commercial applications. This 3-pole breaker features integrated earth fault protection and is built for durability, ensuring safety and efficiency in your electrical distribution panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current (Iu): 630 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
- Overload release current setting: 252-630 A
- Adjustment range short-term delayed short-circuit release: 378-6300 A
- Adjustment range undelayed short-circuit release: 5000 A
- Device construction: Built-in fixed version
- Integrated earth fault protection: Yes
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 2
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Degree of protection (IP): IP30
- Contains batteries: Yes (2 lithium batteries CR1616 included)
- Dimensions (H x L x W): 250mm x 200mm x 150mm
- Weight: 15 kg
Key Features
- Moulded case MCCB for switching, control isolation, and protection of low voltage electrical lines
- Electronic release with adjustable Ir, Isd, Ig, tr, tsd, tg
- Instantaneous protection If = 5 kA
- Green indicator lamp for status
- Connector for test unit
- Logic and dynamic selectivity
- Supplied with fixing screws, connection plates for bars, and insulated shields (phase barriers)
- Integrated earth fault protection
- Screw connection for main circuit
- IP30 degree of protection
- Sealable adjustment
- Can be mounted on plate in XL³ cabinets and enclosures
Professional Installation Requirements
- Installation must be performed by a qualified electrician familiar with low voltage switchgear and circuit breaker systems to ensure compliance with safety standards and proper operation.
Applications
- Industrial electrical distribution panels
- Commercial and residential switchboards
- Protection and control of low voltage electrical circuits
- Power cabinets requiring high breaking capacity circuit breakers
Standards & Compliance
- Complies with AS/NZS 60947.2 – Low-voltage switchgear and controlgear - Circuit-breakers
Environmental Benefits
- Enhanced electrical safety reduces risk of electrical faults and fires
- Durable design reduces need for frequent replacements, minimizing waste
- Energy efficient operation with precise electronic release settings
Warranty Information
Standard Legrand warranty applies, typically 1 to 3 years depending on region and application.
Available Now
The Legrand MCCB DPX³ 630 is available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
