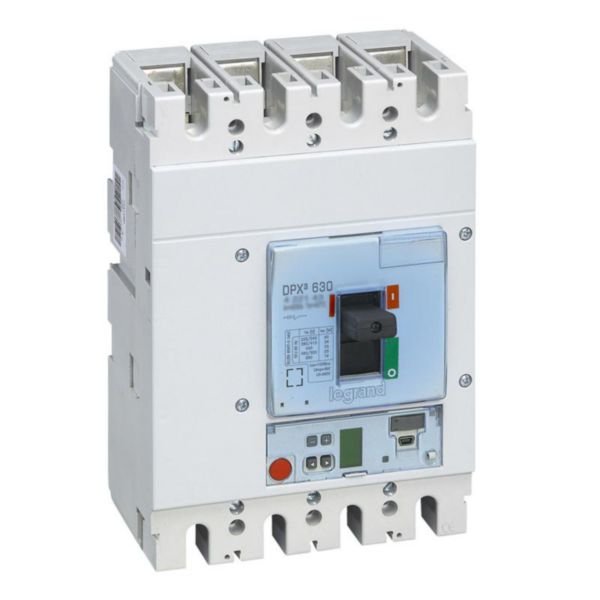

MCCB DPX³ 630 | Electronic Release | 4P | Icu 36 kA | In 250 A | @EA of 1 | by Legrand

BRAND: Legrand
SKU: 422141
$9,626.80 List price: $11,996.50
+ −
30 Days Return Delivery Options
MCCB DPX³ 630 is a high-performance molded case circuit breaker designed for low voltage electrical protection. With an electronic release and a breaking capacity of 36 kA at 400 V, it’s perfect for industrial and commercial applications. This 4-pole device features integrated earth fault protection and is ideal for ensuring safety in electrical distribution panels and switchboards.

Product Name/Title: MCCB DPX³ 630 | Electronic Release | 4P | Icu 36 kA | In 250 A | @EA of 1 | by Legrand

Brand: Legrand

SKU: 422141

Alternatively Known As: MCCB DPX3 630, Legrand DPX³ 630 Circuit Breaker, 4P MCCB 250A, Molded Case Circuit Breaker 36kA

Technical Specifications
  • Rated permanent current (Iu): 250 A
  • Rated voltage: 220-690 V
  • Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
  • Overload release current setting: 100-250 A
  • Adjustment range short-term delayed short-circuit release: 150-2500 A
  • Adjustment range undelayed short-circuit release: 5000 A
  • Device construction: Built-in fixed version
  • Integrated earth fault protection: Yes
  • Type of electrical connection: Screw connection
  • Number of auxiliary contacts as change-over contact: 2
  • With switched-off indicator: Yes
  • With integrated under voltage release: Yes
  • Number of poles: 4
  • Position of connection for main current circuit: Front side
  • Type of control element: Wing knob
  • Complete device with protection unit: Yes
  • Degree of protection (IP): IP30
  • Contains batteries: Yes (2 lithium batteries CR1616 included)
  • Dimensions (H x L x W): 200mm x 120mm x 150mm
  • Weight: 10 kg
Key Features
  • Moulded case circuit breaker (MCCB) for switching, control, isolation, and protection of low voltage electrical lines
  • Electronic release with adjustable settings for Ir, Isd, Ig, tr, tsd, tg
  • 4-pole version with neutral adjustment on front panel
  • Breaking capacity Icu 36 kA at 400 V~
  • Rated current In 250 A
  • Integrated earth fault protection
  • Green indicator lamp and connector for test unit
  • Logic and dynamic selectivity for enhanced protection
  • Supplied with fixing screws, connection plates for bars, and insulated phase barriers
  • Sealable adjustment conforming to IEC 60947-2
  • IP30 degree of protection
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
  • Industrial electrical distribution panels
  • Commercial and residential switchboards
  • Protection and control of low voltage electrical circuits
  • Power cabinets requiring high breaking capacity circuit breakers
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Enhanced electrical safety reduces risk of electrical faults and fires
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty applies; typically 1-2 years against manufacturing defects.

Available Now

The Legrand MCCB DPX³ 630 - Sg electronic release 4P 250A 36kA is available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
