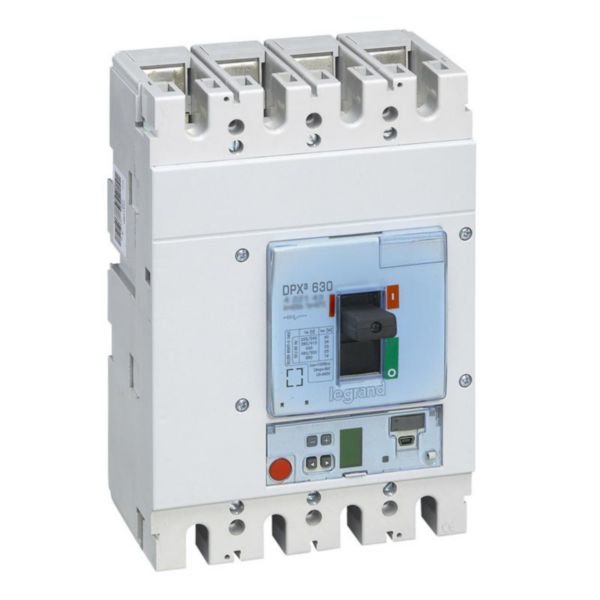

MCCB DPX³ 630 | Electronic Release | 4P | Icu 36 kA | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 422145
$9,769.10 List price: $12,173.80
+ −
30 Days Return Delivery Options
MCCB DPX³ 630 is a high-performance molded case circuit breaker designed for low voltage electrical line protection. With an electronic release and a breaking capacity of 36 kA at 400 V, it’s perfect for industrial and commercial applications. This 4-pole device ensures reliable operation and safety, making it ideal for switchboards and power cabinets.

Product Name/Title: MCCB DPX³ 630 | Electronic Release | 4P | Icu 36 kA | @Each of 1 | by Legrand

Brand: Legrand

SKU: 422145

Alternatively Known As: MCCB DPX3 630, Legrand DPX³ 630 Circuit Breaker, 4P MCCB 630A, Molded Case Circuit Breaker 630A

Technical Specifications
  • Rated permanent current (Iu): 630 A
  • Rated voltage: 220-690 V
  • Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
  • Overload release current setting: 252-630 A
  • Adjustment range short-term delayed short-circuit release: 378-6300 A
  • Adjustment range undelayed short-circuit release: 5000 A
  • Device construction: Built-in fixed version
  • Integrated earth fault protection: Yes
  • Type of electrical connection: Screw connection
  • Number of auxiliary contacts as change-over contact: 2
  • With switched-off indicator: Yes
  • With integrated under voltage release: Yes
  • Number of poles: 4
  • Position of connection for main current circuit: Front side
  • Type of control element: Wing knob
  • Complete device with protection unit: Yes
  • Motor drive optional: Yes
  • Degree of protection (IP): IP30
  • Contains batteries: Yes (2 lithium batteries CR1616)
  • Dimensions (H x L x W): 200mm x 120mm x 150mm
  • Weight: 15 kg
Key Features
  • Moulded case MCCB for switching, control isolation, and protection of low voltage electrical lines
  • Electronic release with adjustable Ir, Isd, Ig, tr, tsd, tg
  • Instantaneous protection If = 5 kA
  • Green indicator lamp for status
  • Connector for test unit
  • Logic and dynamic selectivity
  • 4-pole version with neutral adjustment on front panel
  • Breaking capacity Icu 36 kA at 400 V~
  • Supplied with fixing screws, connection plates for bars, and insulated phase barriers
  • Conforms to IEC 60947-2
  • Sealable adjustment
  • Integrated earth fault protection
  • Screw connection for main circuit
  • IP30 degree of protection
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards.
Applications
  • Industrial electrical distribution panels
  • Commercial and residential switchboards
  • Low voltage electrical line protection and control
  • Power cabinets requiring high breaking capacity circuit breakers
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
  • Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
  • Enhances electrical safety reducing risk of electrical faults and fires
  • Supports energy efficiency by protecting electrical systems from overloads and short circuits
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

Legrand MCCB DPX³ 630 is available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
