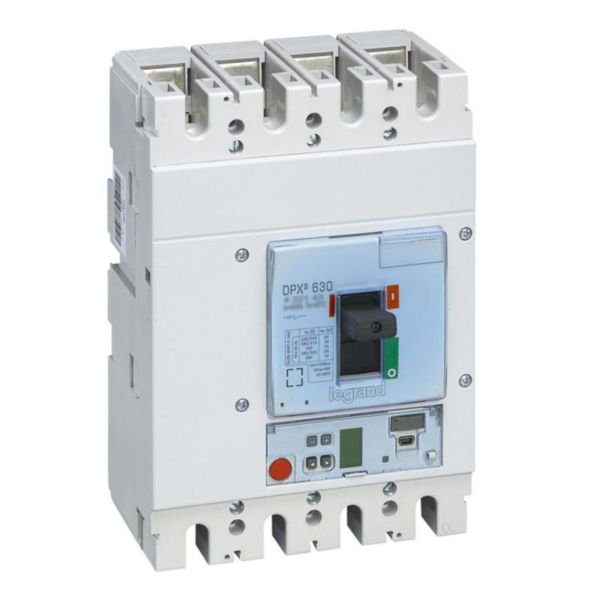

MCCB DPX³ 630 | Sg Electronic Release | 4P | Icu 70 kA | @EA of 1 | by Legrand
MCCB DPX³ 630 is designed for reliable protection and control of low voltage electrical circuits, featuring a 4-pole configuration and an electronic release with adjustable settings. With a breaking capacity of 70 kA at 400 V, it's perfect for industrial and commercial applications, ensuring safety and efficiency in electrical distribution panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated permanent current (Iu): 400 A
- Rated voltage: 220-690 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 70 kA
- Overload release current setting: 160-400 A
- Adjustment range short-term delayed short-circuit release: 240-4000 A
- Adjustment range undelayed short-circuit release: 5000 A
- Device construction: Built-in fixed version
- Integrated earth fault protection: Yes
- Type of electrical connection: Screw connection
- Number of auxiliary contacts as change-over contact: 2
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 4
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No (optional available)
- Degree of protection (IP): IP30
- Contains batteries: Yes (2 lithium batteries CR1616 included)
- Dimensions (H x L x W): 200mm x 120mm x 150mm
- Weight: 15 kg
Key Features
- Moulded case circuit breaker (MCCB) for switching, control, isolation, and protection of low voltage electrical lines
- Electronic release with adjustable settings for Ir, Isd, Ig, tr, tsd, tg
- 4-pole version with neutral adjustment on front panel
- Breaking capacity Icu 70 kA at 400 V~
- Rated current 400 A
- Integrated earth fault protection
- Green indicator lamp and connector for test unit
- Logic and dynamic selectivity for enhanced protection
- Supplied with fixing screws, connection plates for bars, and insulated phase barriers
- Sealable adjustment conforming to IEC 60947-2
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into switchboards or power cabinets.
Applications
- Industrial electrical distribution panels
- Commercial and residential switchboards
- Protection and control of low voltage electrical circuits
- Power cabinets requiring high breaking capacity circuit breakers
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of electrical faults and fires
- Supports energy efficiency by protecting electrical systems from overloads and short circuits
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DPX³ 630 with Sg electronic release is available for immediate purchase, ideal for industrial, commercial, and residential electrical protection applications.
