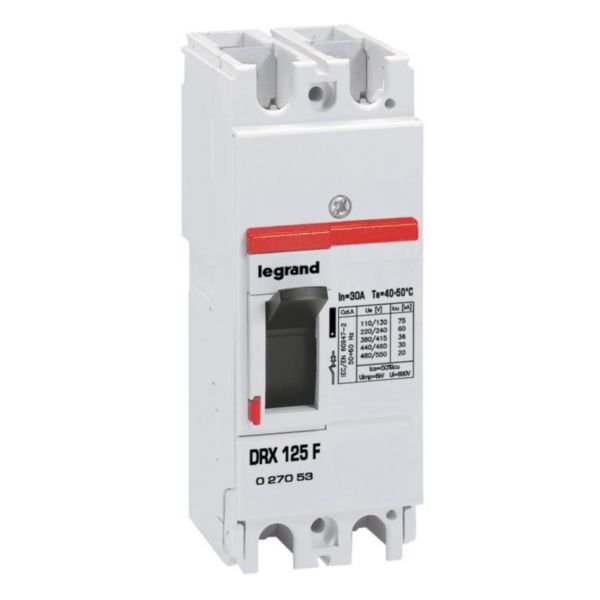

MCCB DRX 125 Thermal Magnetic | 36 kA Breaking Capacity | 30 A Rated Current | 2-Pole Configuration | @Each of 1 | by Legrand
MCCB DRX 125 Thermal Magnetic is designed for reliable overload and short-circuit protection with a breaking capacity of 36 kA at 415 V. Ideal for industrial and commercial applications, this 2-pole circuit breaker ensures safety and compliance with IEC standards. With features like an integrated under voltage release and a switched-off indicator, it’s perfect for use in switchboards and power cabinets.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DRX 125 Thermal Magnetic | 36 kA Breaking Capacity | 30 A Rated Current | 2-Pole Configuration | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027053
Alternatively Known As: Moulded Case Circuit Breaker, Thermal Magnetic MCCB, DRX 125 Circuit Breaker, Legrand 2P MCCB 30A
Technical Specifications
- Rated permanent current (Iu): 30 A
- Rated voltage: 110-550 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
- Overload release current setting: 30-30 A
- Adjustment range short-term delayed short-circuit release: 400-400 A
- Adjustment range undelayed short-circuit release: 400-400 A
- Device construction: Built-in fixed technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (change-over): 1
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 2
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- Thermal magnetic trip unit for overload and short-circuit protection
- Breaking capacity (Icu) of 36 kA at 415 V~
- Rated current of 30 A
- 2-pole configuration
- Suitable for DIN rail (top hat rail) mounting
- Screw connection for main circuit
- Integrated under voltage release and switched-off indicator
- Conforms to IEC 60947-2 and NEMA standards
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Protection and control of low-voltage electrical circuits
- Switching and isolation in industrial and commercial electrical installations
- Use in switchboards and power cabinets
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DRX 125 Thermal Magnetic 2P 30A 36kA 415V is available for immediate purchase, ideal for use in industrial and commercial switchboards and power cabinets.
