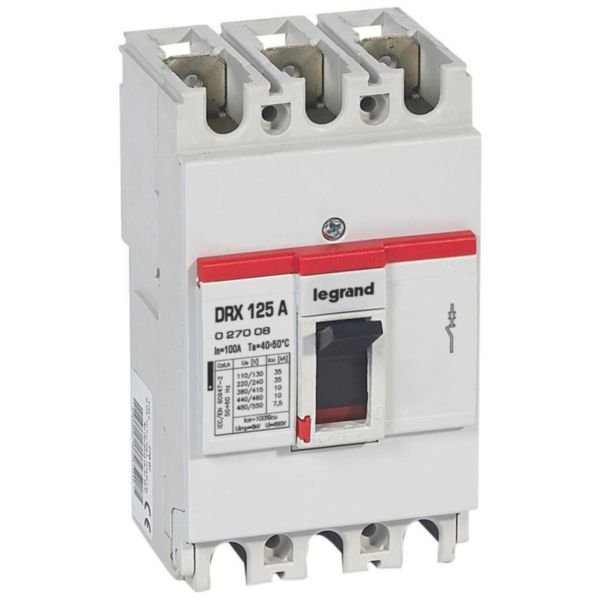

MCCB DRX 125 Thermal Magnetic Circuit Breaker | 10 kA Breaking Capacity | 100 A Rated Current | 3-Pole Design | @Each of 1 | by Legrand
MCCB DRX 125 Thermal Magnetic Circuit Breaker offers reliable overload and short-circuit protection with a breaking capacity of 10 kA at 415 VAC. Designed for three-phase systems, this 100 A rated circuit breaker is perfect for industrial and commercial applications, ensuring safety and efficiency in electrical installations. Its DIN rail mounting and front-side screw connection make installation straightforward for qualified electricians.
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DRX 125 Thermal Magnetic Circuit Breaker | 10 kA Breaking Capacity | 100 A Rated Current | 3-Pole Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027008
Alternatively Known As: Moulded Case Circuit Breaker, MCCB 100A, Thermal Magnetic Circuit Breaker, DRX125 Circuit Breaker, Legrand Circuit Breaker 3P 100A
- Rated permanent current (Iu): 100 A
- Rated voltage: 110-550 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 10 kA
- Overload release current setting: 100-100 A
- Adjustment range short-term delayed short-circuit release: 1000-1000 A
- Adjustment range undelayed short-circuit release: 1000-1000 A
- Device construction: Built-in fixed technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (change-over): 1
- Switched-off indicator: Yes
- Integrated under voltage release: Yes
- Number of poles: 3
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 110mm x 75mm x 90mm
- Weight: 1.5 kg
- Thermal magnetic trip unit for overload and short-circuit protection
- Breaking capacity (Icu) of 10 kA at 415 VAC
- Rated current of 100 A with adjustable overload and short-circuit release settings
- 3-pole design suitable for three-phase systems
- Front side screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Includes M5 terminals for currents ≤ 50 A and M8 terminals for currents > 50 A
- Equipped with switched-off indicator and integrated under voltage release
- Degree of protection IP30
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
- Protection and control of low-voltage electrical circuits in industrial and commercial switchboards
- Switchboards and power cabinets requiring reliable circuit interruption
- Electrical installations needing thermal magnetic protection for motors and circuits
- AS/NZS 60950 – Safety of IT and Communication Equipment
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by preventing electrical faults and downtime
Legrand offers a standard 1-year warranty covering manufacturing defects and workmanship.
The Legrand MCCB DRX 125 Thermal Magnetic Circuit Breaker 100A 10kA 415V 3P is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
