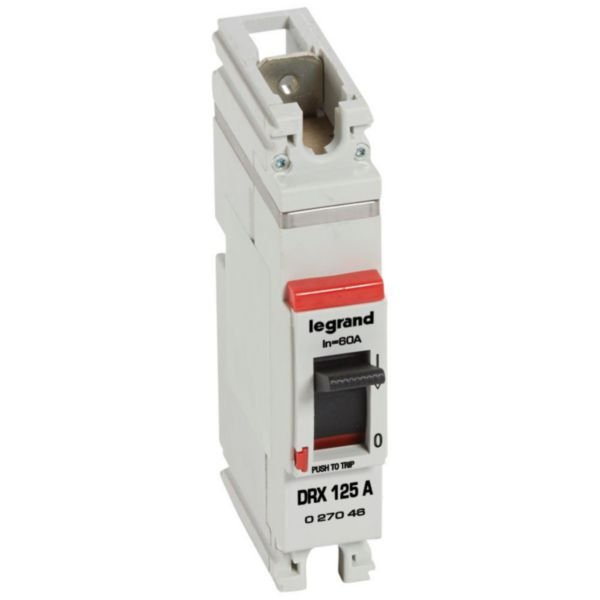

MCCB DRX 125 Thermal Magnetic Circuit Breaker | 25 kA Breaking Capacity | 60 A Rated Current | 1 Pole Design | @Each of 1 | by Legrand
MCCB DRX 125 Thermal Magnetic Circuit Breaker is designed for reliable protection and control of low-voltage electrical circuits. With a 25 kA breaking capacity and a rated current of 60 A, this single pole (1P) device is perfect for switchboards and power cabinets in residential, commercial, and industrial applications. Built to conform to IEC 60947-2 standards, it ensures safety and efficiency in your electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DRX 125 Thermal Magnetic Circuit Breaker | 25 kA Breaking Capacity | 60 A Rated Current | 1 Pole Design | @Each of 1 | by Legrand
Brand: Legrand
SKU: 027046
Alternatively Known As: Moulded Case Circuit Breaker, MCCB DRX125, Thermal Magnetic Circuit Breaker 60A, Legrand Circuit Breaker 1 Pole
Technical Specifications
- Rated permanent current (Iu): 60 A
- Rated voltage: 110-550 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
- Overload release current setting: 60-60 A
- Adjustment range short-term delayed short-circuit release: 600-600 A
- Adjustment range undelayed short-circuit release: 600-600 A
- Device construction: Built-in fixed technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of poles: 1
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 1.2 kg
Key Features
- Thermal magnetic trip unit for overload and short-circuit protection
- Breaking capacity (Icu) of 25 kA at 220/240 V~
- Rated current of 60 A
- Single pole (1P) design
- Conforms to IEC 60947-2 and NEMA standards
- Screw connection for main circuit
- Suitable for DIN rail (top hat rail) mounting
- Fixed thermal and magnetic protection
- With switched-off indicator
- IP30 degree of protection
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Protection and control of low-voltage electrical circuits
- Switchboards and power cabinets in residential, commercial, and industrial installations
- Isolation and switching of electrical lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting circuits from overloads and faults
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand MCCB DRX 125 Thermal Magnetic Circuit Breaker 60A 1P 25kA is available for immediate purchase, ideal for use in switchboards and power cabinets for circuit protection.
