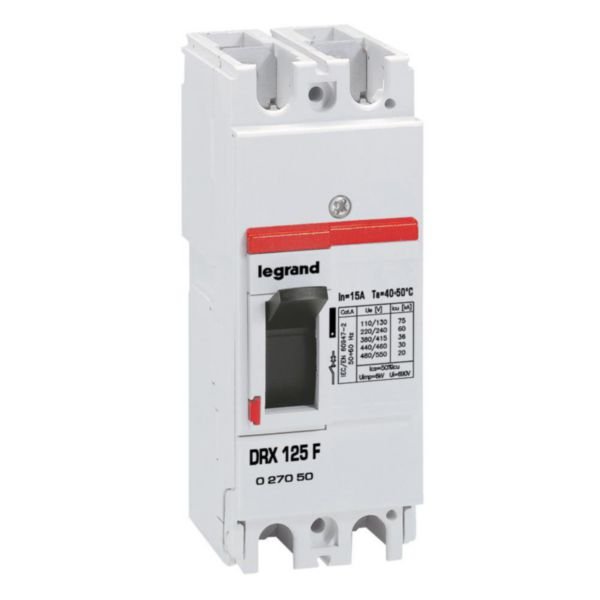

MCCB DRX 125 Thermal Magnetic Circuit Breaker | 36 kA Breaking Capacity | 2-Pole 15 A | @EA of 1 | by Legrand
MCCB DRX 125 Thermal Magnetic Circuit Breaker offers reliable overload and short circuit protection with a breaking capacity of 36 kA at 415 V. Designed for industrial and commercial applications, this 2-pole, 15 A circuit breaker is perfect for switchboards and power cabinets, ensuring safety and efficiency in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: MCCB DRX 125 Thermal Magnetic Circuit Breaker | 36 kA Breaking Capacity | 2-Pole 15 A | @EA of 1 | by Legrand
Brand: Legrand
SKU: 027050
Alternatively Known As: Moulded Case Circuit Breaker, Thermal Magnetic MCCB, DRX 125 Circuit Breaker, Legrand 2P MCCB 15A
Technical Specifications
- Rated permanent current (Iu): 15 A
- Rated voltage: 110-550 V
- Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
- Overload release current setting: 15-15 A
- Adjustment range short-term delayed short-circuit release: 400-400 A
- Adjustment range undelayed short-circuit release: 400-400 A
- Device construction: Built-in fixed technique
- Integrated earth fault protection: No
- Type of electrical connection: Screw connection
- Suitable for DIN rail mounting: Yes
- Number of auxiliary contacts (normally closed): 1
- Number of auxiliary contacts (change-over): 1
- With switched-off indicator: Yes
- With integrated under voltage release: Yes
- Number of poles: 2
- Position of connection for main current circuit: Front side
- Type of control element: Wing knob
- Complete device with protection unit: Yes
- Motor drive integrated: No
- Degree of protection (IP): IP30
- Dimensions (H x L x W): 85mm x 75mm x 45mm
- Weight: 1.5 kg
Key Features
- Thermal magnetic trip unit for overload and short circuit protection
- Breaking capacity (Icu) of 36 kA at 415 V~
- Rated current of 15 A
- 2-pole configuration
- Suitable for DIN rail (top hat rail) mounting
- Screw connection for main circuit
- Includes M5 terminal for In ≤ 50 A
- Fixed thermal and magnetic protection
- With switched-off indicator and integrated under voltage release
- Degree of protection IP30
Professional Installation Requirements
- Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical system.
Applications
- Protection and control of low-voltage electrical lines
- Switching and isolation in industrial and commercial electrical installations
- Use in switchboards and power cabinets
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Enhances electrical safety reducing risk of fire and equipment damage
- Supports energy efficiency by protecting circuits and preventing electrical faults
Warranty Information
Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.
Available Now
The Legrand MCCB DRX 125 Thermal Magnetic 2P 15A 36kA 415V Circuit Breaker is available for immediate purchase, ideal for use in switchboards and power cabinets for industrial and commercial electrical protection.
