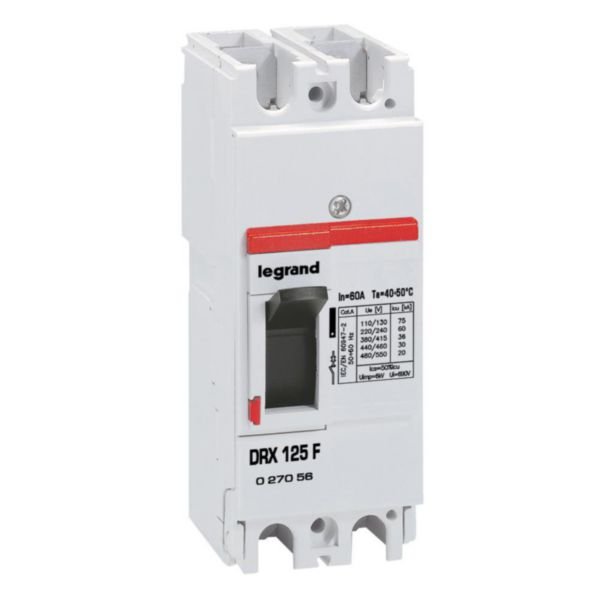

MCCB DRX 125 Thermal Magnetic Circuit Breaker | 36 kA Breaking Capacity | 60 A Rated Current | 2-Pole Configuration | @Each of 1 | by Legrand

BRAND: Legrand
SKU: 027056
$318.40 List price: $396.80
+
MCCB DRX 125 Thermal Magnetic Circuit Breaker offers reliable overload and short-circuit protection with a breaking capacity of 36 kA at 415 V AC. Designed for industrial and commercial applications, this 2-pole, 60 A rated device features adjustable overload settings and is suitable for DIN rail mounting, ensuring safety and compliance with IEC standards.

Product Name/Title: MCCB DRX 125 Thermal Magnetic Circuit Breaker | 36 kA Breaking Capacity | 60 A Rated Current | 2-Pole Configuration | @Each of 1 | by Legrand

Brand: Legrand

SKU: 027056

Alternatively Known As: Moulded Case Circuit Breaker, Thermal Magnetic MCCB, DRX 125 Circuit Breaker, 2P 60A MCCB

Technical Specifications
  • Rated permanent current (Iu): 60 A
  • Rated voltage: 110-550 V AC
  • Rated short-circuit breaking capacity (Icu) at 400 V, 50 Hz: 36 kA
  • Overload release current setting: 60-60 A
  • Adjustment range short-term delayed short-circuit release: 600-600 A
  • Adjustment range undelayed short-circuit release: 600-600 A
  • Device construction: Built-in fixed technique
  • Integrated earth fault protection: No
  • Type of electrical connection: Screw connection
  • Suitable for DIN rail mounting: Yes
  • Number of auxiliary contacts (normally closed): 1
  • Number of auxiliary contacts (change-over): 1
  • Switched-off indicator: Yes
  • Integrated under voltage release: Yes
  • Number of poles: 2
  • Position of connection for main current circuit: Front side
  • Type of control element: Wing knob
  • Complete device with protection unit: Yes
  • Degree of protection (IP): IP30
  • Dimensions (H x L x W): 85mm x 75mm x 45mm
  • Weight: 1.5 kg
Key Features
  • Thermal magnetic trip unit for overload and short-circuit protection
  • Breaking capacity (Icu) of 36 kA at 415 V AC
  • Rated current of 60 A with adjustable overload and short-circuit release settings
  • 2-pole configuration suitable for single-phase and neutral protection
  • Front side screw connection for main circuit
  • Suitable for DIN rail (top hat rail) mounting
  • Includes switched-off indicator and integrated under voltage release
  • Complies with IEC 60947-2 and NEMA standards
  • Degree of protection IP30
Professional Installation Requirements
  • Installation must be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration into the electrical distribution system.
Applications
  • Protection and control of low-voltage electrical lines in industrial and commercial switchboards
  • Switching and isolation in electrical distribution systems
  • Use in power cabinets and switchboards requiring reliable circuit protection
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Enhances electrical safety reducing risk of fire and equipment damage
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty applies, typically 1-2 years against manufacturing defects.

Available Now

The Legrand MCCB DRX 125 Thermal Magnetic 2P 60A 36kA 415V Circuit Breaker is available for immediate purchase, ideal for industrial and commercial electrical protection applications.
